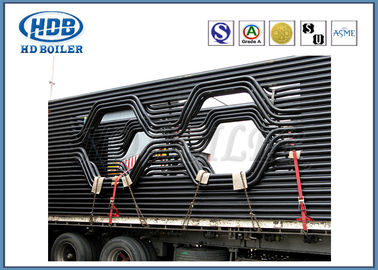

Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification

Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification

  • Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification
  • Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification
  • Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification
  • Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification
Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification
Product Details:
Place of Origin: China
Brand Name: HD Boiler
Certification: ISO9001,ASME,Grade A,SGS,EN
Model Number: Membrane Water Wall
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability: 500 Tons/Month
Contact Now
Detailed Product Description
Condition: New Structure: Fire/Water Tube
Fuel: Coal/Gas/Coal-fired/Water Heat Type: Energy Saving
Pressure: Low/High Pressure Range Of Applications: Industrial/Power Station
Specification: Customized Manufacturing Level: A
Surface Treatment: Painted Trademark: HDB
HS Code: 3215960855
High Light:

membrane water wall

,

boiler water wall tubes







Product Description


The water wall is the main radiation heat surface, arranged inside the boiler chamber and proceeds the heat exchange directly with the high temperature flame. The convection tubes are the convection heat surface of the boiler, arranged between the boiler chamber outlet and the end heat surface and proceed the heat exchange directly with the high temperature fume. The water wall and convection tubes are the main heat surface of the boiler, the tubes diameter for both generally usedΦ 51-60mm boiler steel tubes, also as the request.



Parameter



Name Membrane water panel
Material Carbon steel,Alloy,Stainless steel
Tube size Φ38 - 76 mm, Customize
Standard ISO , ASME
Model Studded
Application Istallable around the boiler combustion chamber



Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification 0



The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.



Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification 1



Certifications


Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification 2



HD Boiler offers a best in class facility,including




  • Fabrication area of 200,000 square meters
  • 150 Engineers
  • 600 Coded welders
  • 60 Licensed Inspectors (including NDT level-lll instructors)
  • Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
  • ISO 90001:2008 Quality System
  • ASME Certificate of Utility Boiler
  • ASME‘S’ , ‘U’ and NB stamp authorization
