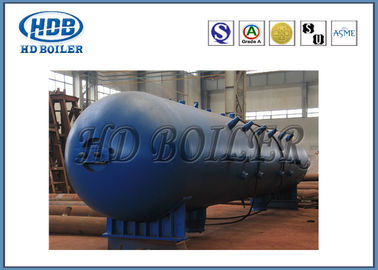

Phase separator Chain Grate Boiler Drum level control environmental protection ASME , NB Code
Description of Steam Drum
A steam drum is a pressure chamber of a steam boiler located at the upper extremity of steam boiler circulatory system. It is a reservoir of water/steam at the top end of the water tubes. The steam drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture. Steam is separated from the water and then discharged at a position above the water level maintained there.
Classification of Steam Drum
Pressure |
Low |
Middle |
High |
Superhigh |
Inner diameter(mm) |
¢ |
¢ |
¢ |
¢ |
Thickness(mm) |
16-25 |
32-46 |
60-100 |
80-100 |
Material |
Carbon steel |
Carbon steel & Alloy steel |
Carbon steel & Alloy steel |
Alloy steel |
Efficient steam-water separation factors of Steam Drum
1. It prevents the carry-over of water droplets into the superheater, where thermal damage could result.
2. It minimizes the carry-under of steam with the water that leaves the drum, where this residual steam would reduce the circulation effectiveness of the boiler.
3. It prevents the carry-over of solids. Solids are dissolved in the water droplets that may be entrained in the steam if not separated properly. By proper separation, this prevents the formation of deposits in the superheater and ultimately on the turbine blades.
**carry-over is the passing of water and impurities to the steam outlet.
**The term critical pressure is the pressure at which there is no difference between the liquid and vapor states of water; i.e., the density is identical. This occurs at 3206 psia.
Certificate
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
Design and Manufacturing capacity
1. Two automatic coiler production lines
2. Hot bending to minimum bending radius 0.6D
3. Membrane wall tube bending , with horizontal and vertical panel bending machines
4. Panel fabrication for up to for 1000MW power plant boilers
5. Fabrication of CFB Boiler Cyclone Separators
6. Fabrication of Header to Chinese standards(GB), US standards (ASME), or EU standard (EN)
7. Broad range of heat treatment equipment including 10 furnaces, offering normalizing and tempering
