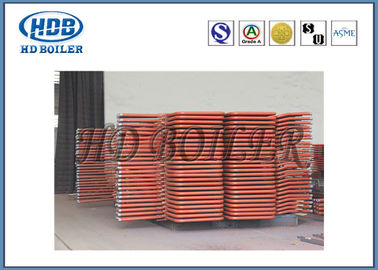

Superheater Coils Tube Heat Transfer Anti Corrosion For Power Plant Boiler
Product Details
| Condition: | New | Type: | Natural Circulation / Once Through |
|---|---|---|---|
| Manufacturing Level: | A | Output: | Hot Water / Steam |
| Hs Code: | 3215960855 | Surface Treatment: | Painted |
| Range Of Applications: | Industry / Power Station | Weight: | 10~1000 Tons |
| Highlight |
convection superheater,superheater in boiler |
||
Product Description
Fire Tube Super Heater and Reheater Coils Anti Corrosion ASME Standard Convection Heat Insulation
Description
Reheaters and superheaters are a set of tubes located in the boiler. Steam from the water walls passes to the superheaters where it is heated above its saturation temperature until the maximum required operating temperature is achieved. The superheated steam then flows through the main steam piping to the high-pressure turbine. Exhaust steam from the high-pressure turbine is guided to the boiler for reheating and from there to the intermediate and low-pressure turbines. High reheating temperatures improve the output and efficiency of a power plant.
Function
A reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.
Testing
Manufacturing and acceptance criteria
JB/T1611 " Technical specification for manufacturing of boiler pipes."
JB/T1612 "boiler pressure test technical conditions. "
JB/T1613 "Technical specification for welding of pressure parts of boiler."
JB/T1615"Technical specification for painting and packing of boiler."
JB/T3375 "Rules for receiving acceptance of materials for boiler construction."
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
