Power Plant CFB Boiler Superheater Coil Alloy Steel ASME Standard
Product Details
| Condition: | New | Type: | Energy Saving |
|---|---|---|---|
| Specification: | Customized | Surface Treatment: | Painted |
| Material: | Alloy , Stainless Steel | HS Code: | 3215960855 |
| Trademark: | HD BOILER | Port: | Shanghai , China |
| Highlight |
convection superheater,reheater in power plant |
||
Product Description

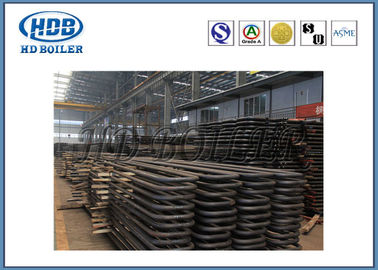

Power Plant CFB Boiler Superheater Coil Alloy Steel ASME Standard
Superheater Coil Description
Superheater
Fossil fuel power plants often have a superheater section in the steam generating furnace.The steam passes through drying equipment inside the steam drum on to the superheater, a set of tubes in the furnace. Here the steam picks up more energy from hot flue gases outside the tubing, and its temperature is now superheated above the saturation temperature.
Reheater
Power plant furnaces may have a reheater section containing tubes heated by hot flue gases outside the tubes. Exhaust steam from the high-pressure turbine is passed through these heated tubes to collect more energy before driving the intermediate and then low-pressure turbines.
Function
Superheater is to increase the temperature of the steam above its saturation point.
Reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.
Details
1. Material composition: It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have 32, 38, 42 or other types of specifications, according to user's needs separately.
2. Arrangement: vertical or horizontal layout.
3. Features: beautiful appearance, size, accuracy, first-class bending and welding technology, first-class detection equipment.
Process
Testing Equipment
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 80 Engineers
3. 200 Coded welders
4. 30 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
