High Efficiency Steel Boiler Fin Tube Heating Elements For Boiler Exchanger
Product Details
| Condition: | New | Structure: | Water Tube |
|---|---|---|---|
| Fuel: | Biomass, Coal-Fire | Type: | Boiler Part |
| Pressure: | Low/High Pressure | Range Of Applications: | Power Station, Industrial |
| Specification: | Customized | Manufacturing Level: | A |
| Surface Treatment: | Painted | Material: | Carbon Steel, Alloy Steel Or Equivalent |
| HS Code: | 3215960855 | Trademark: | HDB |
| Highlight |
spiral fin tube,heat exchanger fin tube |
||
Product Description

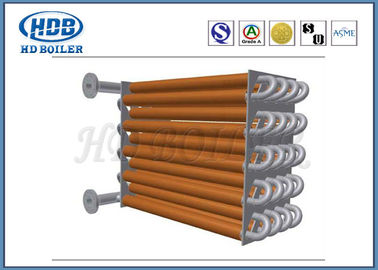

Heating Elements High Efficiency Boiler Fin Tube for Boiler Exchanger
Product Description
Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.Fins are used to increase the effective surface area of heat exchanger tubing.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
Technical parameter
| Medium | air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature | standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials | carbon steel, stainless steel, alloy or special materials |
| Ribs materials | carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment | according to customers specification |
Workshop
Certifications
Company Information
HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
HD Boiler offers a best in class facility,including
- Fabrication area of 200,000 square meters
- 150 Engineers
- 600 Coded welders
- 60 Licensed Inspectors (including NDT level-lll instructors)
- Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
- ISO 90001:2008 Quality System
- ASME Certificate of Utility Boiler
- ASME‘S’ , ‘U’ and NB stamp authorization
