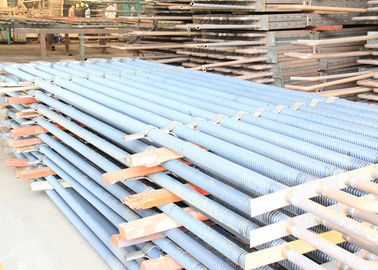

Boiler Stainless Steel Shell And Fin Tubes For Heat Exchangers Energy Saving

Boiler Stainless Steel Shell And Fin Tubes For Heat Exchangers Energy Saving

MOQ: 1 set
Price: Negotiable
Standard Packaging: Iron Frame Packing
Delivery Period: 30 - 60 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 Tons Per Month
Detail Information
Place of Origin
China
Brand Name
HD BOILER
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
Fin tube
Brand Name:
HD BOILER
Available:
Energy Saving
Size:
Customization
Type:
Finned Tube, Fin Tube
Fuels:
Coal
Port:
Shanghai
Highlight:

spiral fin tube

,

heat exchanger fin tube

Product Description





Boiler Stainless Steel Shell And Fin Tubes For Heat Exchangers Energy Saving



Product Description of Fin Tube


Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.Fins are used to increase the effective surface area of heat exchanger tubing.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.



Technical parameter of Fin Tube


Medium air, flue gas, thermal oil, water, brine, refrigerant, etc.
Temperature standard heat exchanger to 560 ° C by special materials can be higher
Pipe materials carbon steel, stainless steel, alloy or special materials
Ribs materials carbon steel, stainless steel, non-ferrous metal, alloy or special materials
Thermal insulation &Surface treatment according to customers specification



Features of Fin Tube


1. The equipment body can be designed into many modules to ensure the long term and stable running;

2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage

3. Improve the heat transfer efficiency

4. Structure arrangement: In line or staggered arrangement



Workshop


Boiler Stainless Steel Shell And Fin Tubes For Heat Exchangers Energy Saving 0



Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization
