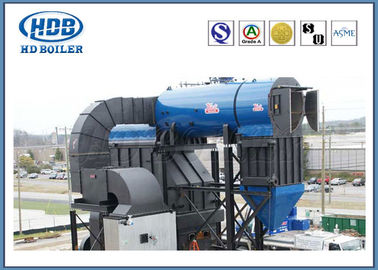

Low Carbon Biomass Fuel Boiler / Biomass Steam Generator Natural Circulation
Product Details
| Condition: | New | Structure: | Fire/Water Tube |
|---|---|---|---|
| Fuel: | Biological | Type: | Natural Circulation |
| Pressure: | Low/High Pressure | Range Of Applications: | Industrial |
| Specification: | Customized | Manufacturing Level: | A |
| Surface Treatment: | Painted | Output: | Hot Water/Steam |
| Highlight |
biomass fired boilers,biomass steam boiler |
||
Product Description
Low carbon Biomass Fuel Steam Boiler Natural circulation boiler Environmental protection
Character
a) 100% corrugated furnace and spirally corrugated tube: have good thermal flexibility.
b) Scientific airflow design: the temperature of the furnace inside is uniformity and also can absorb flame heat effectively.
c) Excellent imported burner: the fuel can burn completely and meet the most stringent international environmental requirements.
d) The inside of the furnace body equipped with man hole, head pore and hand hole which make the repairmen and maintenance much simpler and convenient.
e) Intelligent control: The diesel oil fired steam boiler can work automatically according to the users setting program.
f) Spoiler in the smoke tube: biomass boiler has high thermal efficiency.
Usage
1. The water and steam came from boiler can supply heat for industry and people’s livelihood. It is also can be converted to mechanical energy by steam power plant.
2. Hot water boiler (to provide hot water), is mainly used for life. There are also some used for industry.
3. Steam boiler (to provide steam), is mainly used for coal power stations, ships, locomotive, industrial and mining enterprises.
4. The main function of boiler is heating, bathing and supply of high quality steam, etc. The boiler which used for heating and bathing is water boiler. The industry used boiler is steam boiler.
Parameter
| Parameter | Unit | DZL1-0.7 | DZL2-0.7 | DZL4-1.25 | DZL6-1.25 | DZL8-1.6 | DZL10-1.6 | DZL15-1.6 |
| Rated steam output | t/h | 1 | 2 | 4 | 6 | 8 | 10 | 15 |
| Fixed pressure | Mpa | 0.7 | 0.7 | 1.25 | 1.25 | 1.6 | 1.6 | 1.6 |
| Fixed vapor temperature | °C | 170 | 170 | 194 | 194 | 204.3 | 204.3 | 204.3 |
| Water temperature | °C | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Fuel | coal, biomass, straw pellet, rice husk so on | |||||||
| Thermal eficiency | % | 80 min | ||||||
| Gross weight | t | 13.5 | 18.5 | 23 | 35 | 46 | 58 | 83 |
Certifications
Company Information
HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
