Automatic Horizontal Gas Fired Hot Water Boiler , High Pressure Steam Boiler ISO9001
Product Details
| Condition: | New | Structure: | Fire Tube |
|---|---|---|---|
| Fuel Available: | Gas-Fired, Oil-Fird, Diesel-Fired | Rated Working Pressure(Mpa): | 1.0-1.25 |
| Evaporation Capacity: | 1-20t / H | Rated Steam Temperature: | 184-193 |
| Surface Treatment: | Painted | Operation: | Automatic |
| Typical User: | Food And Textile And Hotel And Oil Fired | Placemen: | Horizontal Boiler |
| Highlight |
industrial steam boiler,coal fired hot water boiler |
||
Product Description

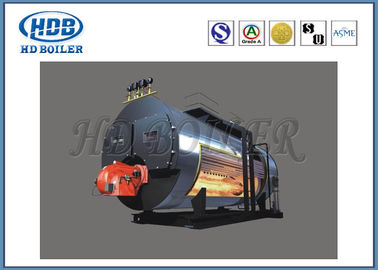

Fast start WNS OIL(GAS) Fired Steam Hot Water Boiler Small Footprint with ISO9001
Structural features
1, WNS series boiler adopts horizontal three return wet back liner structure is a corrugated furnace, Mainly by the pot shell, furnace, steering smoke room, smoke tube etc.
2, Boiler suitable for light oil, heavy oil, natural oil, liquefied petroleum gas, city gas and other fuels.
The performance advantage
- Use the wet liner structure, furnace heating surface wave back, symmetrical layout, effectively reduce the thermal stress, improves the safety and life of the boiler.
- Using the thread smoke tube to improve the heat transfer effect of flue pipe.
- Boiler heating surface layout reasonable, high thermal efficiency, fast start.
- The steam boiler combustion chamber adopts low position, so that the boiler water level safety range is larger, the boiler steam is larger, the steam quality is well guaranteed.
- Using the international well-know brand burner and advanced automatic control system, the combustion is more stable, more convenient operation, operation more safety.
- Boiler structure is compact, small footprint, fast installation.
Parameter
| Model | WNS 2-1.0-Y,Q |
WNS 4-1.25Y,Q |
WNS 6-1.25-Y,Q |
WNS 8-1.25-Y,Q |
WNS 10-1.25-Y,Q |
WNS 15-1.25-Y,Q |
WNS 20-1.25-Y,Q |
|
| Rated evaporation capacity(t/h) | 2 | 4 | 6 | 8 | 10 | 15 | 20 | |
| Rated working pressure(MPa) | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| Rated steam temperature | 184 | 193 | 193 | 193 | 193 | 193 | 193 | |
| Wear-supply temperature | 20 | 20 | 60 | 60 | 60 | 104 | 104 | |
| Boiler volume(m3) | 3.2 | 7.4 | 10.6 | 11.7 | 14.4 | 16.8 | 21.2 | |
| Design efficiency(%) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Applicable fuel |
Light oil,heavy oil,natura gas,liquified gas and urban coal gas |
|||||||
| Extemal size | Lenght A(mm) | 5084 | 6022 | 7151 | 7600 | 8360 | 9050 | 9650 |
| Width B(mm) | 2450 | 2700 | 2800 | 3000 | 3000 | 4500 | 5000 | |
| Height H(mm) | 2380 | 2684 | 2882 | 3200 | 3200 | 5200 | 5600 | |
| Boiler weight (t) | 7.2 | 12.6 | 17.2 | 18.6 | 23.5 | 36.2 | 45.5 | |
| Diamater of main steam opening(mm) | 65 | 100 | 125 | 150 | 150 | 200 | 200 | |
| Diameter of safety valve(mm) | 40×2 | 50×2 | 65×2 | 65×2 | 80×2 | 100×2 | 100×3 | |
| Chimney diamater(mm) | 350 | 450 | 600 | 700 | 750 | 900 |
1000 |
|
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
