Water Wall Construction For Boiler , Water Wall Tubes In Boiler TUV Certification

Water Wall Construction For Boiler , Water Wall Tubes In Boiler TUV Certification

MOQ: 1Set
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 Tons/Month
Detail Information
Place of Origin
Zhangjiagang,Jiangsu,China
Brand Name
HD Boiler
Certification
ISO9001/SGS/TUV/ASME/EN
Model Number
Membrane Water Wall
Condition:
New
Structure:
Fire/Water Tube
Fuel:
Coal/Gas/Coal-fired/Water Heat
Type:
Energy Saving
Pressure:
Low/High Pressure
Range Of Applications:
Industrial/Power Station
Specification:
Customized
Manufacturing Level:
A
Surface Treatment:
Painted
HS Code:
3215960855
Highlight:

membrane water wall

,

boiler water wall tubes

Product Description

Energy Saving Solar Water Wall Panel For Boiler TUV Certification



Product Description


The water wall is the main radiation heat surface, arranged inside the boiler chamber and proceeds the heat exchange directly with the high temperature flame. The convection tubes are the convection heat surface of the boiler, arranged between the boiler chamber outlet and the end heat surface and proceed the heat exchange directly with the high temperature fume. The water wall and convection tubes are the main heat surface of the boiler, the tubes diameter for both generally usedΦ 51-60mm boiler steel tubes, also as the request.



Parameter



Name Membrane water panel
Material Carbon steel,Alloy,Stainless steel
Tube size Φ38 - 76 mm, or as required
Standard ISO , ASME
Model Studded
Application Istallable around the boiler combustion chamber

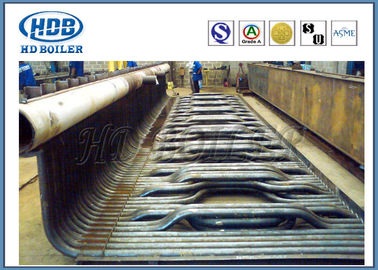

Water Wall Construction For Boiler , Water Wall Tubes In Boiler TUV Certification 0



Advantages of Membrane Water Wall


1). To guarantee the leakproofness of furnace wall and reduce the air leak of combustion chamber.

2). To achieve the full water cooling of combustion chamber, and the boiler accessories membrane water wall is benefit to prevent coking under the condition of supplemental firing.

3). The thermal storage capacity is small, the warming of combustion chamber is fast and the cooling is also fast, which could shorten the cooling time of boiler’s start and furnace shut down.

4). It is good to adopt top supported water cooled wall and it could reduce the load of boiler framework, which is benefit to overhang.

5) Compared with the bare tubes, the membrane water wall improves the heat absorption capacity of tubes.

6) The factory direct boiler membrane water wall could improve the Preliminary combination degree of boiler parts and reduce the installation workload.



Company Indroduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



Features


1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safet



Water Wall Construction For Boiler , Water Wall Tubes In Boiler TUV Certification 1



Certifications



Water Wall Construction For Boiler , Water Wall Tubes In Boiler TUV Certification 2
