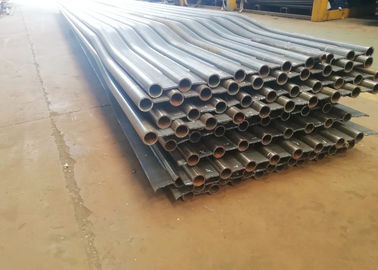

Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance

Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance

  • Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance
  • Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance
  • Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance
  • Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance
Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance
Product Details:
Place of Origin: China
Brand Name: HD BOILER
Certification: ISO9001 , SGS , TUV , ASME , EN
Model Number: Membrane water panel
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Iron Frame Package
Delivery Time: 50 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Tons / Month
Contact Now
Detailed Product Description
Product Name: Boiler Water Walls Application: Boiler System
Color: Customer Requirement Material: Carbon Steel
Circulation Type: Natural Circulatiom Packaging: Seaworthy Package
High Light:

boiler water wall panels

,

membrane water wall

Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance



Description



Water Wall Tube: These are tubes in the Boiler where water is evaporated to steam and are also called Steam Generating Tubes. These Tubes also form the Walls of the Boiler and are hence called Water Walls or Water Wall Panels. These Tubes have very complicated shapes to allow Inspection openings and burner throats and fabrication require intricate binding on CNC programmable bending Machines and checking on 3D layouts.



Specification



Name Membrane water panel
Material Carbon steel,Alloy,Stainless steel
Tube size Φ38 - 76 mm, Customize
Standard ISO , ASME
Model Studded
Application Istallable around the boiler combustion chamber



Advantages



1. To guarantee the leakproofness of furnace wall and reduce the air leak of combustion chamber.

2. To achieve the full water cooling of combustion chamber, and the boiler accessories membrane water wall is benefit to prevent coking under the condition of supplemental firing.

3. The thermal storage capacity is small, the warming of combustion chamber is fast and the cooling is also fast, which could shorten the cooling time of boiler’s start and furnace shut down.

4. It is good to adopt top supported water cooled wall and it could reduce the load of boiler framework, which is benefit to overhang.

5. Compared with the bare tubes, the membrane water wall improves the heat absorption capacity of tubes.

6. The factory direct boiler membrane water wall could improve the Preliminary combination degree of boiler parts and reduce the installation workload.



Waterwall Panel Workshop



Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance 0



Company Introduction



Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization



Boiler Membrane Water Wall Carbon Steel High Pressure Wear Resistance 1
