High Temperature Resistance Boiler Headers And Manifolds For Heating System

High Temperature Resistance Boiler Headers And Manifolds For Heating System

MOQ: 1 Set/Sets 10tons
Price: Negotiable
Standard Packaging: Iron Frame Package
Delivery Period: 50 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 800 Tons / Year
Detail Information
Place of Origin
CHINA
Brand Name
HD BOILER
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
Boiler Header
Trademark:
HD BOILER
Surface Treatment:
Painted
Range Of App:
Power Station, Industrial
Product Name:
Boiler Header
Origin:
Zhangjiagang, China
Port:
Shanghai
Highlight:

914mm Boiler Manifold Headers

,

NDT Boiler Manifold and Header

,

Boiler fabrication Manifold Headers

Product Description

High temperature resistance Header Manifolds Carbon Steel Natural Circulation Power Plant





Product Description



Headers form an important part of all types of boilers. Steam from the generating tubes is collected in headers which are therefore always under pressure. This pressure may vary from 300 psi to 2000 psi. Since headers are always under pressure, the utmost care is taken by us while fabricating them. Depending on the generating capacity of the boiler the header sizes fabricated by us vary from 100 mm to 600 mm NB. The stubs of various sizes are very carefully welded to the main body of the header to provide the desired openings from the headers



Quality Control



1. Impact test and Strength calculation report with applied materials information.

2. 100%NDT(non-destructive inspection) report of steel plate, tube and electrode.

3. X-ray, γ-ray and liquid penetrant test inspection report to ensure the quality of the entire boiler.

4. Hydraulic test report: ensure the standard working pressure and safety.



Classification



Material Carbon steel,Alloy steel,Stainless steel.
Length According to costumes requirements.
Temperature Range 300℃~1500℃
Diameter(OD) 76mm~914mm


Analysis



High Temperature Resistance Boiler Headers And Manifolds For Heating System 0

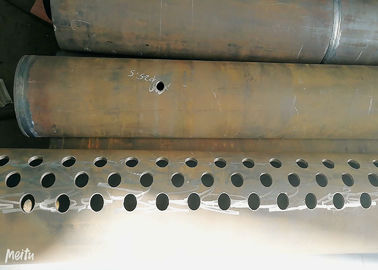

Product Display



High Temperature Resistance Boiler Headers And Manifolds For Heating System 1



Company Introduction



Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization



High Temperature Resistance Boiler Headers And Manifolds For Heating System 2



Design and Manufacturing capacity



Two automatic coiler production lines

Hot bending to minimum bending radius 0.6D

Membrane wall tube bending , with horizontal and vertical panel bending machines

Panel fabrication for up to for 1000MW power plant boilers

Fabrication of CFB Boiler Cyclone Separators

Fabrication of Header to Chinese standards(GB), US standards (ASME), or EU standard (EN)

Broad range of heat treatment equipment including 10 furnaces, offering normalizing and tempering
