| MOQ: | 1 Set |
| Price: | Negotiable |
| Standard Packaging: | Iron Frame Package |
| Delivery Period: | Negotiation |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 20 sets per Year |

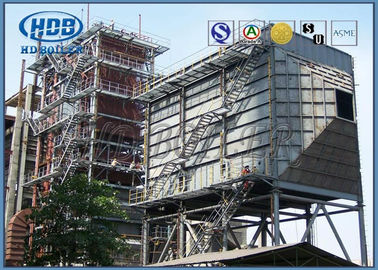

75t/h Circulating Fluidized Bed Boiler Desulfurization function High efficency
Product Description
The circulating fluidized bed (CFB) is a developing technology for coal combustion to achieve lower emission of pollutants. By using this technology, up to 95% of pollutants can be absorbed before being emitted to the atmosphere.
Characteristics
1. Steel sheet separator cyclone and air-cooled(water cooled )cyclone separator.
2. Tail superheater area using air-cooled(water-cooled)wall enclosure.
3. Rear fender economizer furnace wall: the guard plate frame light furnace wall, boiler tightness.
4. Design of steel structures: Using finite element analysis software of the boiler structure was accurately calculated to ensure that the load distribution is reasonable.
5. Optimizing a secondary air ratio can be reduced auxiliary power, strengthening extension to extend the disturbance in the furnace flue gas residence time, improve thermal efficiency of the boiler.
6. Furnace section play, smoke long residence time in the furnace, the furnace, the furnace up speed is low, the furnace circulating volume, improve the boiler burnout rate, colleagues, greatly reducing the wear of the furnace water wall region.
Parameter
| Item | Unit | Specification | ||
| Model | HD-75/3.82-M | HD-75/5.3-M | HD-75/9.8-M1 | |
| Rated evaporation | t/h | 75 | ||
| Max.Continues evaporation | t/h | 85 | ||
| Rated steam pressure | MPa | 3.82 | 5.3 | 9.8 |
| Rated steam temperature | ℃ | 450 | 485 | 540 |
| Feed water temperature | ℃ | 150 | 150 | 215 |
| Fuel type | Anthracite, lean coal, bituminous coal, lignite, petroleum coke, breeze, etc. | |||
| Furnace height | M | 26.2 | ||
| Furnace section | m2 | 21 | ||
| Number of coal feeder | Unit | 2 | ||
| Super heater thermostat mode | Spray desuperheater | |||
| Unburned carbon(bituminous coal) | % | <6 | ||
| Pre-heater air temperature | ℃ | 150 | ||
| Exhaust gas temperature | ℃ | 145.5 | ||
Flow Chart
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 400,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
|
|
