9320mmx1897mmx1790mm Carbon Steel Boiler Membrane Wall for Coal Fuel Power Plants

MOQ:	20
Price:	2600

Detail Information

Product Description

Detail Information

Model NO.:

HDBMW01

Surface Treatment:

Painted

Fuel:

Coal

Material:

SA210A1 And SA36

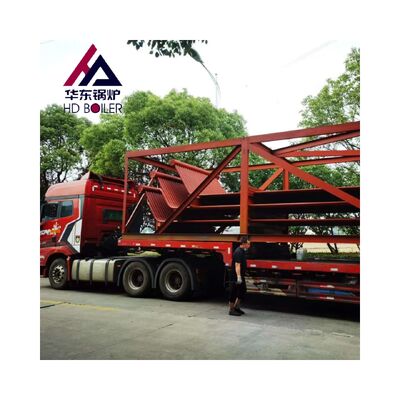

Transport Package:

Steel Frame

Specification:

9320mmx1897mmx1790mm

Production Capacity:

8000 Tons/Year

Production Technique:

Saw

Tube Size:

Customized

Standard:

ASME Standard

Equipment:

Automatic Production Equipment

Tube Material:

Carbon Steel Or Alloy Steel

Fin Welding:

Automatic Fin To Tube

Tube Bending:

Large Tube Benders

Panel Type:

Membrane, Studded, Plain, Wall-attached, Double-sided

Highlight:

Carbon Steel Boiler Membrane Wall

9320mmx1897mmx1790mm Water Wall Panel

Coal Fuel Boiler Waterwall Panel

Product Description

240 Panels Carbon Steel Made Boiler Membrane Walls

Water wall panels are essential components in modern industrial boilers, designed to replace traditional steam generating tubes. These panels efficiently absorb high-temperature radiant heat from combustion flames while minimizing heat loss through enhanced airtightness. Our manufacturing process utilizes automatic fin-to-tube welding machines and large tube benders to produce boiler tubes in various shapes and sizes tailored to customer specifications.

Boiler water walls consist of membrane walls constructed from tubes welded together, with or without metal strips between them. These walls form the enclosure for coal combustion chambers. Functioning as the evaporator section, water wall tubes primarily contain liquid water that gradually evaporates as it rises through the boiler system.

Available Boiler Water Wall Panel Types

Membrane Boiler Water Wall Panel: Features rolled finned tubes spot-welded into sealed combined heating surfaces, significantly improving furnace airtightness and reducing air leakage.
Studded Water Wall Tubing: Equipped with welded pins (20-25mm length, 6-12mm diameter) and chrome ore refractory plastic coating to reduce heat absorption and increase combustion zone temperature. Ideal for challenging fuel ignition scenarios and specific slag tapping furnaces.
Plain Tube Boiler Water Wall Panel: Constructed from seamless steel pipes in the simplest structural configuration.
Wall-Attached Boiler Water Wall Tubing: Embedded within furnace wall inner surfaces for single-sided heat absorption.
Double-Sided Heated Water Wall Panel: Installed centrally in large boiler furnaces to create two independent sections, both receiving heat exposure.

Product Gallery

Technical Specifications

Water wall panels serve the critical function of absorbing heat from high-temperature flames or flue gases to generate steam or hot water within the tubes, effectively reducing chamber temperatures.

Product Name	Water Wall Panels
Material	ASME Standard Carbon Steel or Alloy Steel
Tube Size	Customized to Requirements
Standard	ASME Standard Compliance
Equipment	Automatic Production Equipment
Application	Sugar Mill Boiler Maintenance
