SA192 Boiler Membrane Wall with Manifold Header ASME Standard Water Wall Panel
  • name
  • name
  • name
  • name
  • name

SA192 Boiler Membrane Wall with Manifold Header ASME Standard Water Wall Panel

MOQ: 20
Price: 2600
Detail Information
Product Description
Detail Information
Model NO.:
HDBMW01
Surface Treatment:
Painted
Fuel:
Coal
Welding Way:
Saw
Material:
ASME SA192M And Q235B
Tube Size:
63.5*4.5mm
Standard:
ASME/GB Standard
Equipment:
Automatic Production Equipment
Production Capacity:
8000 Tons/Year
Transport Package:
Steel Frame
HS Code:
8402900000
Structure Type:
Membrane Wall
Working Fluid:
Water Or Steam
Heat Absorption:
Radiation Heat
Thermal Expansion:
Improved System
Highlight:

SA192 Boiler Membrane Wall

,

Manifold Header Water Wall Panel

,

ASME Standard Boiler Waterwall Panel

Product Description
Base Tube SA192 Boiler Membrane Wall with Manifold Header
Product Overview
Water wall panels serve as the primary heating surface in boilers, consisting of multiple rows of steel tubes arranged around the boiler chamber. These panels circulate water or steam internally while absorbing radiant heat from high-temperature combustion products in the furnace, facilitating efficient evaporation and heat transfer.
Membrane Wall Technology
Our company specializes in manufacturing membrane water walls, which feature an air-tight construction combining pipes and fins. This advanced design offers superior performance and reliability for demanding industrial applications.
Key Advantages
  • Minimal furnace air leakage for improved efficiency
  • Pipe-laying wall design reduces structural load and overall boiler costs
  • Suspension structure compatibility with enhanced thermal expansion systems
  • Optimized for large-scale mechanized production with high assembly rates
  • Low heat storage capacity enables faster startup and shutdown cycles
Technical Specifications
Membrane water walls are engineered for high-capacity, high-temperature, and high-pressure boiler applications, despite requiring more complex manufacturing processes.

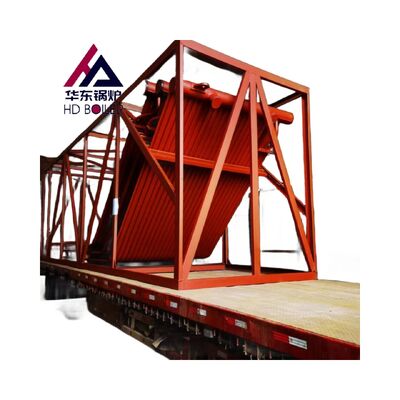

Product Gallery
SA192 Boiler Membrane Wall with Manifold Header ASME Standard Water Wall Panel 0 SA192 Boiler Membrane Wall with Manifold Header ASME Standard Water Wall Panel 1 SA192 Boiler Membrane Wall with Manifold Header ASME Standard Water Wall Panel 2 SA192 Boiler Membrane Wall with Manifold Header ASME Standard Water Wall Panel 3
Technical Parameters
The following specifications detail membrane walls manufactured for a Pakistan project:
Parameter Specification
Product Name Membrane Walls
Material ASME SA192M and Q235B
Tube Size 63.5*4.5mm
Standard As per ASME/GB standard
Equipment Automatic production equipment
Application Maintenance of Sugar Mill Boiler and Power Plant Boiler
