Customizable High Temp Carbon Steel Superheater Coil ASME For Coal Biomass

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Seaworthy packing
Delivery Period: 50 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 Tons / Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HD BOILER
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
superheater
Material:
Carbon Steel,Alloy,Stainless Steel
Surface Treatment:
Painted
HS Code:
3215960855
Packaging:
Iron Frame Packing
Available:
Energy Saving
Color:
Red / Grey Other Color
Application:
Power Plant
Specification:
Customized
Product Description


Customizable High Temp Carbon Steel Superheater Coil ASME For Coal Biomass

How does a superheater coil work?

High-temperature flue gas or a heat source flows around or through the coil, transferring heat to the saturated steam inside, raising its temperature to a superheated state.
Product Description

The wall superheater is a special class of superheater. Sometimes part of the superheating surface needs to be located at the furnace proper. The wall superheater surface is used in these applications. A wall superheater is basically a flat panel of joined tubes that hangs either as close to the furnace membrane wall as possible or forms part of the furnace. Sometimes the backpass side walls form a superheating surface. Typically wall superheaters are the first superheater after the steam drum or the coolest superheater.



Specification

NameEconomizer
specifications of finned tubeunit(mm)
Bare pipe(od)25-165
bare pipe(thick)2-8
finned thicks0.6-3.0
finned height5-30
finned tube thread pitch5-30
finned tube length≤12000



Functions


This superheater has two parts, the primary superheater and the secondary heater. The primary superheater is the first heater that is passed by steam after the steam comes out of the steam drum.

After the steam is heated on the super primary heater, eating steam will be passed on the secondary superheater to be heated again. So on the secondary superheater steam formed is the hottest steam among the others.

Steam from the secondary superheater which becomes superheated steam. SH steam will flow to rotate High-Pressure Turbine and then the pressure and temperature will drop.

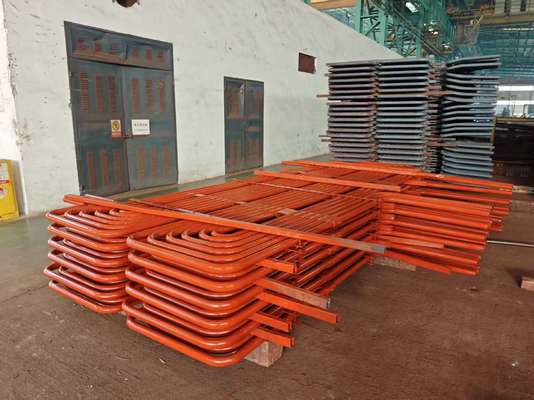

Customizable High Temp Carbon Steel Superheater Coil ASME For Coal Biomass 0
Customizable High Temp Carbon Steel Superheater Coil ASME For Coal Biomass 1

Certification

Customizable High Temp Carbon Steel Superheater Coil ASME For Coal Biomass 2






Quality Control

1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization


Company

Customizable High Temp Carbon Steel Superheater Coil ASME For Coal Biomass 3
