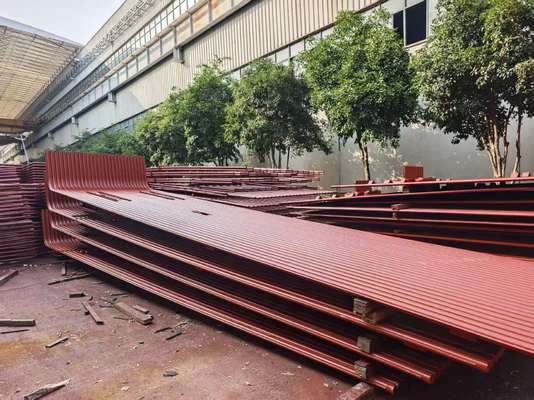

Customized Heavy Duty Boiler Membrane Wall for Power Station Applications
Product Details
| Color: | Red/blue/black | Pressure: | 0.2MPa |
|---|---|---|---|
| Application: | Power Station Boilers | Width: | 500mm |
| Length: | Customerized | Standard: | ASME, EN, ISO |
| Material: | Cabon Steel/Stainless Steel/Alloy Steel | Size: | Customized |
| Highlight |
customized boiler membrane wall,heavy duty boiler membrane,power station boiler wall |
||
Product Description
| Color | Red/blue/black |
| Pressure | 0.2MPa |
| Application | Power Station Boilers |
| Width | 500mm |
| Length | Customized |
| Standard | ASME, EN, ISO |
| Material | Carbon Steel/Stainless Steel/Alloy Steel |
| Port | Shanghai, Zhangjiagang |
The membrane water walls are essential components in high-capacity boilers operating at high temperature and pressure. These walls serve multiple critical functions in boiler systems, including furnace wall protection and slag prevention.
- Product Name: Boiler Membrane Wall
- Application: Boiler systems
- Impact Resistance: Excellent
- Connection Type: Flange
- Corrosion Resistance: High
- Temperature Rating: 400℃
| Connection Type | Flange |
| Impact Resistance | Excellent |
| Corrosion Resistance | High |
| Installation Method | Bolt Connection |
| Temperature Rating | 400℃ |
| Thickness | 3mm |
| Surface Treatment | Polishing |
| Material | Stainless Steel |
- Ensures furnace wall tightness and reduces combustion chamber air leakage
- Fully water-cooled combustion chamber helps prevent coking during intense combustion
- Low heat storage capacity enables rapid heating and cooling cycles
- Reduces boiler frame load and facilitates suspension
- Improved heat absorption compared to plain tubes
- Enhanced pre-assembly capability reduces installation workload
Our HDB Membrane Wall is designed for power station boilers, offering excellent impact resistance and effective boiler wall partitioning. Constructed from stainless steel with a pressure rating of 0.2MPa, it features bolt connection installation for quick and easy setup. This solution significantly reduces boiler wall damage risks from high temperature and pressure while providing superior sealing and insulation to minimize energy loss.
HDB Boiler Membrane Walls are available in custom designs with standard 500mm width and 3mm thickness. We provide polished surface finishing and multiple material options—including carbon steel, stainless steel, and alloy steel—to match your specific project needs.
Each Boiler Membrane Wall is securely packaged in protective cardboard boxes with bubble wrap cushioning. All shipments include clear labeling with contents, weight, and destination information, plus fragile handling warnings for safe transit.
We provide comprehensive technical support and a 12-month warranty for our Boiler Membrane Wall products. Our expert team is available for consultation and can arrange professional installation services upon request.
Established in 1985, Hua Dong Boiler Co., Ltd. is a leading manufacturer with 400,000㎡ production facilities and $110 million in fixed assets. With 1,100 employees including 150 technicians and 600 certified welders, we hold ASME certifications (S, U, NB stamps) and ISO9001, SO3834, EN12952 quality management system certifications.
