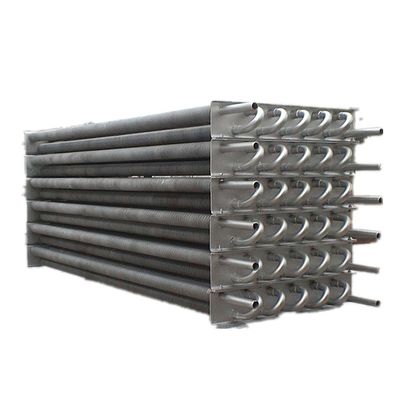

Power Station CFB Boiler Economizer with ASTM Certification for Central Heating
Product Details
| Type: | Natural Circulation | Structure: | Fire Tube And Water Tube |
|---|---|---|---|
| Pressure: | Low / High Pressure | Style: | VERTICAL |
| Fuel: | Coal / Gas / Coal-fired / Water Heat | Output: | Hot Water / Steam |
| Weight: | 20000 KG | Surface Treatment: | Painted |
| Bare Pipe OD: | 25-1650 Mm | Bare Pipe Thickness: | 2-40 Mm |
| Fin Thickness: | 0.6-3.0 Mm | Fin Height: | 5-30 Mm |
| Fin Tube Pitch: | 5-30 Mm | Fin Tube Length: | ≤12000 Mm |
| Material: | Carbon Steel, Alloy, Austenitic Steel | ||
| Highlight |
ASTM Certification Boiler Economizer,Central Heating CFB Boiler Economizer,Power Station Boiler Economizer |
||
Product Description
| Parameter (Unit) | Specification (mm) |
|---|---|
| Bare pipe (OD) | 25-1650 |
| Bare pipe (Thickness) | 2-40 |
| Fin (Thickness) | 0.6-3.0 |
| Fin (Height) | 5-30 |
| Fin tube thread pitch | 5-30 |
| Fin tube length | ≤12000 |
- Impact test and strength calculation reports with complete materials documentation
- 100% NDT (non-destructive testing) of all steel plates, tubes, and electrodes
- Comprehensive weld inspection including X-ray, γ-ray, and liquid penetrant testing
- Hydraulic pressure testing to verify working pressure standards and safety
Product Highlights
Power Station CFB Boiler Economizer Central Heating ASTM Certification Product Overview The economizer is a mechanical heat exchange device designed to reduce energy consumption by preheating fluids. This unit is specifically engineered for power station CFB (Circulating Fluidized Bed) steam boiler ...
