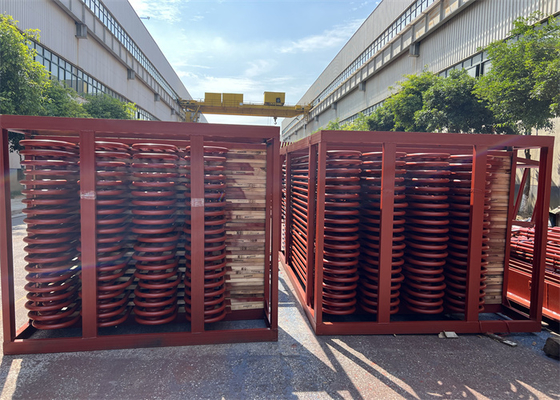

Heat Resistant Steam Superheater and reheater Coils For Boiler Planning Industrial

Heat Resistant Steam Superheater and reheater Coils For Boiler Planning Industrial

HRSG Boiler Superheater and Reheater Desuperheater system ASME Standard Chinese Manufacturer

Superheating system Superheater Coi

• Superheaters in large capacity boilers are of both convective and radiant type.
• The convective type superheaters are placed in the second pass of the boiler, and these are also called low temperature super heaters. Generally about a 40 to 60 degree centigrade temperature pick up takes place on the steam side in this superheater.
• The steam from this moves to a radiant type superheater called the panel or platen superheater, and about a 70 to 100 degree centigrade pickup take place there.
• This is followed by the final superheater, and the remaining required temperature is picked up here. One has to understand that the designer can vary the pickup pattern depending upon his way of practice or requirement.
• But in all the methods adopted, the final temperature must be within a narrow range generally plus / minus five degrees centigrade. The superheaters are so surfaced that, for the design fuel of the boiler, there will not be any desuperheating requirement.

Desuperheating syste

• Three major systems are adopted the world over: the injection type, the flue gas flow diverting type, and the burner tilt. The last two are adopted for reheater steam temperature control. The first one is adopted for superheater temperature control.
• It also used in reheaters during emergencies when there is a need to quench the temperature even after reaching the maximum of control on the normal system adopted.
• The material selection for the superheater before the injection will be greatly influenced by the quantity of injection.

Functions and characteristics of superheaters and reheaters

functions of superheaters and reheaters:

Superheaters and reheaters are important parts for the heating surfaces, used to increase steam temperature, aiming to improve steam enthalpy and further to increase the thermal circulation efficiency for power station.

Superheaters work to heat surnatured steam to superheated steam with a certain tempetature. When boiler loads or other working conditions change, it is necessary to make sure superheated steam temperature to be normal, and within allowable range of temperature variation.

From the thermal circulation in power station, the original parameters of pressure and temperature is higher, the thermal efficiency of circulation is better, or the steam humidity of the steam turbine rear is too high, influencing its safety. While the superheaer steam temperature is limited by metal materials, at present, due to limitation of metal materials, superheated temperature for most power station boilers are still within the range of 540-555 dgrees, and to avoid the steam humidity of blade of steam turbine rear too big, thus middle reheating system is applied.

What are the differences of Superheater And Reheater?

Details

Design structure

1. heating saturated steam, temperature up to 900 degree C.

2. high efficiency, >90%.

3. high speed heating.

4. design with stainless steel.

5. long design service life, 15 years.

Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.

HD Boiler offers a best in class facility

For over 30years, Hua Dong Boiler has been consistently innovating and improving our boiler superheaters and reheaters.The improvements in bending,welding and design ensure our products meet both Euorpean and American standards, ensuring a relabile performance.
