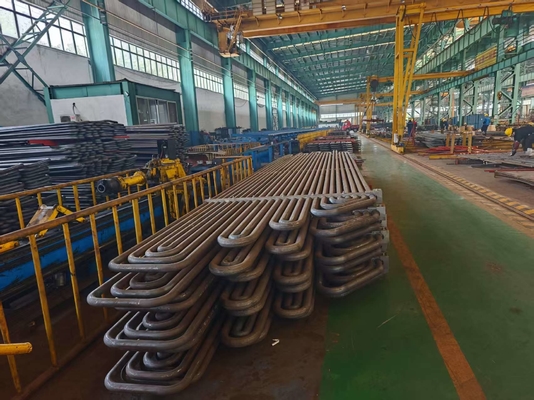

Customized Steel Tube Steam Boiler Part Superheater And Reheater

MOQ: 100 pcs
Price: 2,000 - 5,000 USD per pc
Standard Packaging: Sea worthy Packing for Exporting with Iron Frame
Delivery Period: Within 90 Days after getting the down payment or L/C
Payment Method: T/T, L/C at sight
Supply Capacity: About 1,000 tons per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HD Boiler
Certification
ASME, ISO9001, EN
Model Number
Superheater
Type:
Natural Circulation
Application:
Boiler Maintaince,Boiler Pipe,Heating Element
Technique:
Pipe Bending
Usage:
Industrial,Power Station,Thermal Power Plant/station Boiler
Surface Treatment:
Painting, Sandblasting, Galvanizing
Fuel:
Biomass, Waste
Keyword:
Boiler Superheater Tube
Color:
Customized
Highlight:

Steam Boiler Superheater Reheater

,

Customized Superheater Reheater

,

Steel Tube Superheater Reheater

Product Description

Customized Steel Tube Steam Boiler part Superheater And Reheater





Special protection during cold startup?

Minimum steam flow requirement to prevent tube starvation.



Differences



Type Advantages Disadvantages Supporting method
Pendant-type 1.Firm structural support 1. Flow blockage by condensed steam 2. Needs a slow restart to purge the water that accumulates in the bottom. supported from above
Inverted-type 1.Proper drainage of the condensed steam 1. Lack the structural rigidity, especially in high speed gas flow Supported from below
Horizontal -type

1. Proper drainage

2. Good structural rigidity.

 1. They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.

Customized Steel Tube Steam Boiler Part Superheater And Reheater 0





Principle



• Principle of superheater is similar to steam generating tubes of boiler.

• The hot gases at high temperature sweep over superheater tubes and raise the temperature of steam which magnitude depends upon exit gas temperature leaving the superheater and gas velocity.



Application



Use for heating saturated steam, steam temperature could be up to 900 degree C.

Superheater Capacity Upgrades to Increase Power Generation



Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.

Customized Steel Tube Steam Boiler Part Superheater And Reheater 1


Tags:

convection superheater,

reheater in power plant,

superheater in boiler
