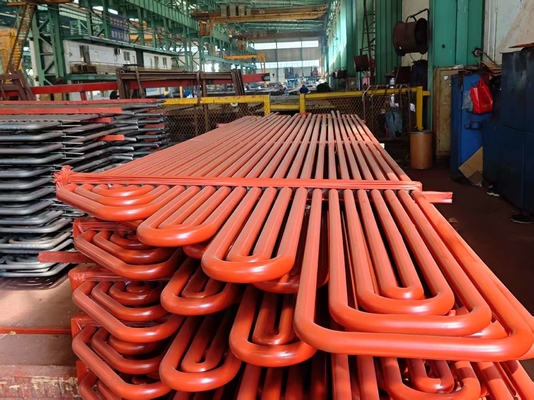

Biomass Waste Heat Rediated Boiler Steam Superheater Serpentuator Stainless Steel
Product Details
| Type: | Natural Circulation | Application: | Boiler Maintaince,Boiler Pipe,Heating Element |
|---|---|---|---|
| Material: | Stainless Steel | Usage: | Industrial,Power Station,Thermal Power Plant/station Boiler |
| Port: | Zhangjiagang，Shanghai | Fuel: | Biomass, Waste |
| Keyword: | Boiler Superheater Tube | Style: | Horizontal And Vertical |
| Highlight |
Stainless Steel Superheater,Biomass Waste Heat Superheater,Steam Superheater Serpentuator |
||
Product Description
Biomass Waste Heat Rediated Boiler Steam Superheater Serpentuator Stainless Steel
What is a superheater?
A superheater is a device in a boiler that heats saturated steam to become superheated steam, increasing its temperature above the boiling point without raising pressure.
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs a slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Principle
• Principle of superheater is similar to steam generating tubes of boiler.
• The hot gases at high temperature sweep over superheater tubes and raise the temperature of steam which magnitude depends upon exit gas temperature leaving the superheater and gas velocity.
Application
Use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
