High Efficiency Boiler H Finned Tube Power Plant Heat Exchanger

High Efficiency Boiler H Finned Tube Power Plant Heat Exchanger

MOQ: 1 Set / Sets 10tons
Price: Negotiable
Standard Packaging: Iron Frame Packing
Delivery Period: 50-100 days
Payment Method: L/C, , T/T, , Western Union
Supply Capacity: 500 Tons Per Month
Detail Information
Place of Origin
ZhangJiagang , Jiangsu , China
Brand Name
HD BOILER
Certification
ISO9001 , SGS , ASME , EN , TUV
Model Number
Spiral Fin Tube
Application:
Power Plant Boiler
Range Of Applications:
Power Station , Industrial
Specification:
Customized
Size:
Customized
Function:
Heat Exchanger
Material:
Carbon Steel / Stainless Steel
Highlight:

H Finned Boiler Fin Tube

,

Power Plant Boiler Fin Tube

,

High Efficiency Boiler Fin Tube

Product Description





High Efficiency Boiler H Finned Tube Power Plant Heat Exchanger​



Product Description


Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.



H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.

H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer, which has high efficiency,little resistance,less wear and light weight.

Technical parameters The high degree of fin 0-16mm(or outside diameter of fin φ25-φ75);
Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
Single metal rolling finning tube Pure aluminum 1060 or aluminum alloy 6063,6061.
Outside diameter Shall be less than 40mm
Double metal rolling finning tube Tube-based protection from the outer layer of aluminum
tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless
steel tube and copper tube can also be used, as well as titanium alloy tube
Package The aluminum finned tubes are well packed in plastic film in the inner and steel fram
in the outer

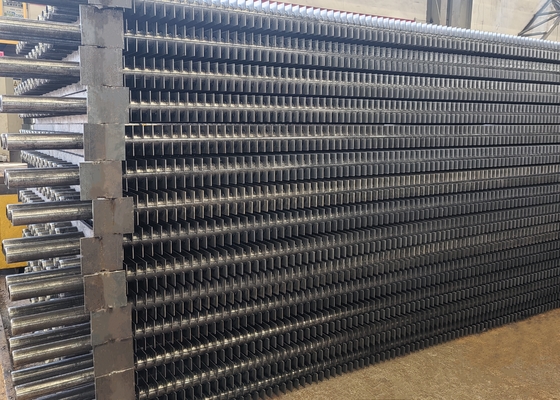

High Efficiency Boiler H Finned Tube Power Plant Heat Exchanger 0





Manufacture


High frequency and high frequency welding spiral finned pipe is one of the most widely used spiral finned pipe at HDB.It is widely used in power, metallurgy, cement industry waste heat recovery and petrochemical industry.High frequency welding spiral finned pipe is in the steel belt winding steel pipe at the same time

, using the skin effect and proximity effect of high frequency current, the steel belt and the outer surface of the steel pipe are heated until the plastic state or melting, and the welding is completed under certain pressure of the wound steel belt.This high frequency welding is actually a solid phase welding.Compared with Mosaic, brazing (or overall hot dip galvanizing) and other methods, it is more advanced in product quality (fin bonding rate is high, up to 95%), productivity and automation.




High Efficiency Boiler H Finned Tube Power Plant Heat Exchanger 1






























































Specifications


1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.

Base Tube Material
Stainless Steel, Carbon Steel, Alloy Steel, Copper Alloy,Aluminum ,SA179
Fin Material
Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
Standard
ASME SA213/ASTM; ASME EA 106, ASME SA178, ASTM B1111
Fin depth
0.5-3mm
Base pipe O.D
12.7-18mm
Fins per inch
8-20Nos (as customer's request)
Test Requirement
Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement.
Application
Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc.


Company Information


HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
High Efficiency Boiler H Finned Tube Power Plant Heat Exchanger 2
