Heat Recovery Boilers Economizer / Coils SA210M A1 Steel High Pressure

Heat Recovery Boilers Economizer / Coils SA210M A1 Steel High Pressure

MOQ: 500 tons
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 500 Tons per month
Detail Information
Place of Origin
China
Brand Name
HD BOILER
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
Economizer
Condition:
New
HS Code:
3215960855
Type:
Energy Saving
Surface Treatment:
Painted
Pressure:
Low / High Pressure
Structure:
Fire / Water Tube
Highlight:

Heat Recovery Boilers Economizer

,

A1 Steel Boilers Economizer

,

High Pressure Steel Boilers Economizer

Product Description



Heat Recovery Boilers Economizer / Economiser Coils SA210M A1 Steel



Application


During boiler operation in typical commercial and industrial applications, approximately 10-20% of the heating value of fuel is expelled with the stack gases to the atmosphere. Stack economizers are designed to recover significant amounts of this stack gas energy loss, thereby vastly improving boiler system efficiency. There are several considerations when selecting an economizer:

• Gas-side Pressure Drop. Added back-pressure on the boiler stack affects the combustion air fan throughput capability. The economizer and combustion air fan(s) must be sized properly in order to assure a suitable system operation and capacity.

• Feedwater Temperature. The feedwater to the economizer must be deaerated and the temperature setpoint minimally at 220oF to prevent tube corrosion.

• Water-side Pressure Drop. Feedwater pumps must be sized to accommodate the economizer pressure drop. Additionally, a continuous modulating feedwater system is required to ensure proper flow rates through the economizer.



Product Description


Economizer coils are used in downstream of Boiler bank to preheat the feed water absorbing heat from hot exhaust gases. Economizers are always water tube type. Economizers have different types of Tubes depending upon the application. Bare tubes in Economizers are widely used in Industrial boilers and for applications like Heat recovery boilers in Sulfuric acid plants, gilled tubes are employed. Finned tubes are popular in HRSG applications. Feed water can be heated up to a level about 20 - 30 C below saturation temperature of the boiler.



Specifications


Description Economizer
Material Alloy steel, Carbon steel, SA210C ,SA213T22, etc.
Material standard ASTM, EN or ISO etc.
Dimension Customization
Weight

Min: 10 ton

Max.:1000 ton

Smelting Process: EF+LF + VD
Process Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
UT standard ASTM A388 or EN10228, etc

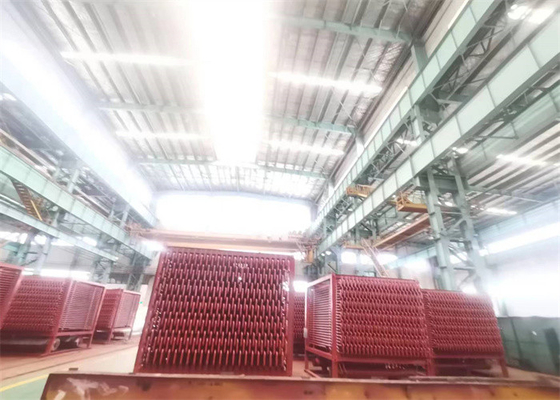

Heat Recovery Boilers Economizer / Coils SA210M A1 Steel High Pressure 0



Heat Recovery Boilers Economizer / Coils SA210M A1 Steel High Pressure 1





Economizer Workshop


Heat Recovery Boilers Economizer / Coils SA210M A1 Steel High Pressure 2



Certificate


Heat Recovery Boilers Economizer / Coils SA210M A1 Steel High Pressure 3



Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
