SA210A1 Tubes Made Boiler Economizer With Handcuff For Maintenance And Replacement

SA210A1 Tubes Made Boiler Economizer With Handcuff For Maintenance And Replacement

MOQ: 1 set
Price: Negotiable
Standard Packaging: Seaworthy packing
Delivery Period: 60~150 days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 tons per month
Detail Information
Place of Origin
China
Brand Name
HDB
Certification
ASME, EN, ISO9001, SGS
Model Number
Boiler Economizer
Porduct Name:
Boiler Economizer
Application:
Maintenance And Replacement
Material:
SA210A1
Keyword:
Boiler Economizer Bank
Production Technique:
Tube Bending
Loading Port:
Shanghai, China
Highlight:

Tubes Made Boiler Economizer

,

Boiler Economizer With Handcuff

,

Tube Bending Boiler Economizer

Product Description



SA210A1 Tubes Made Boiler Economizer With Handcuff For Maintenance and Replacement



Product Introdution

Boiler economizer is kind of heat exchanger to heat the feed water using the flue gas heat. The flue gas coming from the tube outside is up and down cross-flow scrubbing the tube bundle, passing the heat to the tube wall. The water is flowing from bottom to top, and absorts the heat from the tube wall, and its temperature is getting high. This way not only can countercurrent heat transfer to save metal consumption, but also is good for water/steam to flow and exhaust as well as decreasing corrusion. One more, this way works well for dust cleaning.





Working Process of Boiler Economizer



There are three stages from the feed water in the boiler heated into superheated steam:feed water preheating, evaporation, and superheating. The three stages are finished on three different heating surfaces. The boiler steam and water circuit are composed of the three different heating surfaces as well as their connecting pipes. Boiler economizers are one of them, and it is right the equipment to preheat the feed water. Thus, it is the heating surface with the lowest temperature for boiler working fluid in the boiler steam and water circuit. The working fluid passing through this equipment is monophasic water(non-boiling economizer).

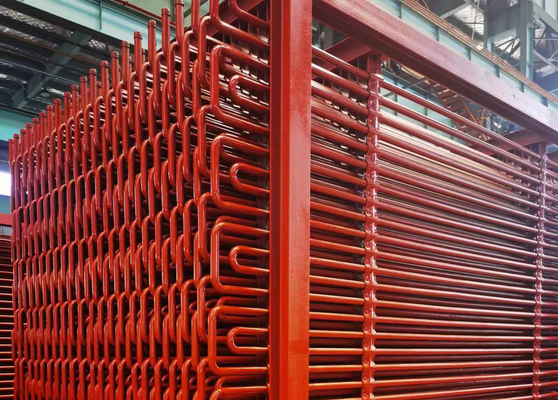

SA210A1 Tubes Made Boiler Economizer With Handcuff For Maintenance And Replacement 0



Parameters of Boiler Economizer



Description Boiler economizer
Material Alloy steel, Carbon steel, SA210C ,SA213T22, etc.
Material standard ASTM, EN or ISO etc.
Dimension Customization
Weight

Min: 10 ton

Max.:1000 ton


Process Material→Tube Bending and Bevelling → Butt Welding→ Shield Manufacturing → Assembly 1 →RT→Handcuffs and Shields Welding→Assembly 2 →Hydro Test →Cleaning and Painting →Packing into Frames


SA210A1 Tubes Made Boiler Economizer With Handcuff For Maintenance And Replacement 1







Company Profile



The products of our company have been widely used in major power plants of various provinces and cities in China, bringing stable and significant economic and social benefits to cooperated power plants. At the same time, we attach great importance to product development and strive to improve product quality. Through the cooperation with a number of domestic and foreign companies, we constantly explore the international market.

SA210A1 Tubes Made Boiler Economizer With Handcuff For Maintenance And Replacement 2
