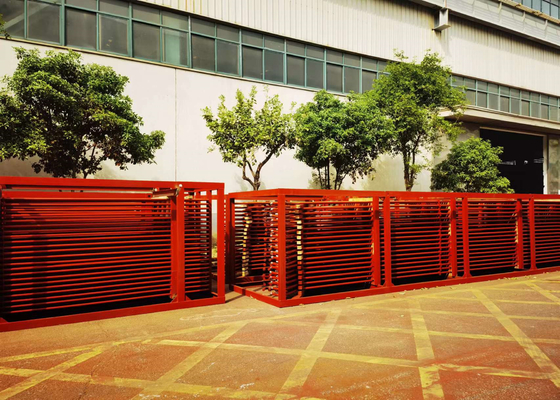

ASME 12Cr1MovG Boiler Superheater Coil for Maintenance

MOQ:	20 Tons
Standard Packaging:	Steel Frame
Delivery Period:	60-150Days
Payment Method:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Certification

ISO, ASME, EN

Model Number

Superheater Coil

Product Name:

Boiler Superheater

Material:

12Cr1MovG

Application:

Maintenance And Replacement

Standard:

Tube Bending Technique:

Cold/Hot Bending

Size:

36mm*6mm

Highlight:

ASME Boiler Superheater Coil Hot Bending

Boiler Superheater Coil For Maintenance

stainless steel Boiler Superheater Coil

Product Description

ASME Boiler Superheater Coil Of 12Cr1MovG For Maintenance And Replacement

Product Specifications

Attribute	Value
Product Name	Boiler Superheater
Material	12Cr1MovG
Application	Maintenance and Replacement
Standard	ASME
Tube Bending Technique	Cold/Hot Bending
Size	36mm*6mm

Product Description

The ASME Boiler Superheater made of 12Cr1MovG is designed for reliable maintenance and replacement applications in power plant systems.

Superheater Functionality

In fossil fuel power plants, the superheater section is located in the steam generating furnace. Steam passes through drying equipment in the steam drum before entering the superheater tubes, where it absorbs additional energy from hot flue gases, raising its temperature above the saturation point.

Reheater Operation

Power plant furnaces may include a reheater section where exhaust steam from the high-pressure turbine passes through heated tubes to gain additional energy before driving intermediate and low-pressure turbines.

Installation Configurations

Superheater serpentine tube panels are available in two primary installation types:

Vertical Suspension Type: Single-layer structure typically used in high-temperature superheater and reheater sections. The tube panel connects directly to the header pipe joint and is suspended longitudinally.
Horizontal Suspension Type: Primarily double-layer structure fixed by water-cooled hanging tubes, commonly used in low-temperature superheater/reheater sections and economizer serpentine tubes.

Superheater Types Comparison

Type	Advantages	Disadvantages	Supporting Method
Pendant-type	Firm structural support	Flow blockage by condensed steam; Requires slow restart to purge accumulated water	Supported from above
Inverted-type	Proper drainage of condensed steam	Lacks structural rigidity in high speed gas flow	Supported from below
Horizontal-type	Proper drainage; Good structural rigidity	Does not view flame directly (mainly convective type)	Supported in vertical gas ducts parallel to main furnace

Manufacturing Expertise

With over 30 years of experience, our boiler superheaters and reheaters feature continuous improvements in bending, welding, and design techniques to meet both European and American standards for reliable performance.

Material Specifications

Available materials for superheater & reheater fabrication:

Carbon steel
Stainless steel
Nickel and special alloys

Standard tube diameter range: 32-42mm
