Waste To Energy Superheater Coil Thermal Coal Boiler Power Plant Energy Saving
Product Details
| Fuel: | Coal | Type: | Energy Saving |
|---|---|---|---|
| Range Of Applications: | Industrial Power Plant | Specification: | Customized |
| Surface Treatment: | High Corrosion | Certification: | ISO, ASME, Grade A |
| Highlight |
Superheater Coil Thermal Coal Boiler,High Corrosion Boiler Superheater Coil,Boiler Superheater Coil Energy saving |
||
Product Description

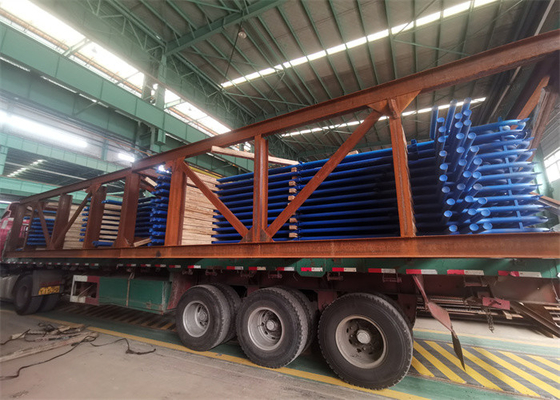

Waste to Energy Thermal Coal Boiler Superheater Coil Power Plant Superheater
Functions and characteristics of superheaters and reheaters
Superheaters and reheaters are important parts for the heating surfaces, used to increase steam temperature, aiming to improve steam enthalpy and further to increase the thermal circulation efficiency for power station.
Superheaters work to heat surnatured steam to superheated steam with a certain tempetature. When boiler loads or other working conditions change, it is necessary to make sure superheated steam temperature to be normal, and within allowable range of temperature variation.
From the thermal circulation in power station, the original parameters of pressure and temperature is higher, the thermal efficiency of circulation is better, or the steam humidity of the steam turbine rear is too high, influencing its safety. While the superheaer steam temperature is limited by metal materials, at present, due to limitation of metal materials, superheated temperature for most power station boilers are still within the range of 540-555 dgrees, and to avoid the steam humidity of blade of steam turbine rear too big, thus middle reheating system is applied.
What are the differences of Superheater And Reheater?
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs a slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Details
| Setting Information | |
| process | welding |
| structure | horizontal or vertical |
| material | carbon steel, alloy steel |
| tubes | φ32, 38, 42, etc. |
| size | customized |
| brand | HTEG |
| Warranty | 18 months |
Design structure
- 1. heating saturated steam, temperature up to 900 degree C.
- 2. high efficiency, >90%.
- 3. high speed heating.
- 4. design with stainless steel.
- 5. long design service life, 15 years.
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
HD Boiler offers a best in class facility
For over 30years, Hua Dong Boiler has been consistently innovating and improving our boiler superheaters and reheaters.The improvements in bending,welding and design ensure our products meet both Euorpean and American standards, ensuring a relabile performance.
