SA213T11 Alloy Steel Boiler Superheater Coil Industrial Natural Gas Water Heater TUV

SA213T11 Alloy Steel Boiler Superheater Industrial Natural Gas Water Heater TUV

HRSG Boiler Superheater and Reheater Desuperheater system ASME Standard Chinese Manufacturer

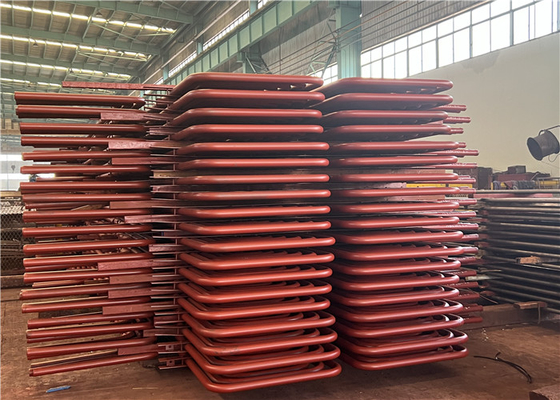

Superheating system Superheater Coil

• The Steam Superheater is a coil type heat exchanger which is used to produce superheated steam or to convert the wet steam to dry steam, generated by a boiler. It is different from a boiler in a way that, boiler utilizes both sensible heat as well as latent heat to convert water into steam while superheater utilizes only sensible heat to superheat the steam in order to increase its enthalpy.

Desuperheating syste

• Three major systems are adopted the world over: the injection type, the flue gas flow diverting type, and the burner tilt. The last two are adopted for reheater steam temperature control. The first one is adopted for superheater temperature control.
• It also used in reheaters during emergencies when there is a need to quench the temperature even after reaching the maximum of control on the normal system adopted.
• The material selection for the superheater before the injection will be greatly influenced by the quantity of injection.

Functions and characteristics of superheaters and reheaters

functions of superheaters and reheaters:

Superheaters and reheaters are important parts for the heating surfaces, used to increase steam temperature, aiming to improve steam enthalpy and further to increase the thermal circulation efficiency for power station.

Superheaters work to heat surnatured steam to superheated steam with a certain tempetature. When boiler loads or other working conditions change, it is necessary to make sure superheated steam temperature to be normal, and within allowable range of temperature variation.

From the thermal circulation in power station, the original parameters of pressure and temperature is higher, the thermal efficiency of circulation is better, or the steam humidity of the steam turbine rear is too high, influencing its safety. While the superheaer steam temperature is limited by metal materials, at present, due to limitation of metal materials, superheated temperature for most power station boilers are still within the range of 540-555 dgrees, and to avoid the steam humidity of blade of steam turbine rear too big, thus middle reheating system is applied.

Details

Design structure

1. heating saturated steam, temperature up to 900 degree C.

2. high efficiency, >90%.

3. high speed heating.

4. design with stainless steel.

5. long design service life, 15 years.

Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.

HD Boiler offers a best in class facility

For over 30years, Hua Dong Boiler has been consistently innovating and improving our boiler superheaters and reheaters.The improvements in bending,welding and design ensure our products meet both Euorpean and American standards, ensuring a relabile performance.
