High Pressure Boiler Superheater Reheater Assemble In Steam Power Plant

High Pressure Boiler Superheater Reheater Assemble In Steam Power Plant

High Pressure Boiler Superheater Reheater Assemble In Steam Power Plant
High Pressure Boiler Superheater Reheater Assemble In Steam Power Plant
High Pressure Boiler Superheater Reheater Assemble In Steam Power Plant
Product Details:
Place of Origin: China
Brand Name: HD Boiler
Certification: ISO9001,ASME,Grade A,SGS,EN,TUV
Model Number: Economizer
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Ton/Tons per Month
Contact Now
Detailed Product Description
Structure: Fire/Water Tube Fuel: Coal/Gas/Coal-fired/Water Heat Etc
Pressure: Low/High Pressure Range Of Applications: Industrial/Power Station
Specification: Customized Surface Treatment: Painted
High Light:

Boiler Superheater Reheater

,

Steam Power Plant Superheater Reheater

,

High Pressure Superheater Reheater



Professional Boiler Superheater/Reheater Assemble In Steam Power Plant






Production Of Superheater And Reheater


The Steam Superheater is a coil type heat exchanger which is used to produce superheated steam or to convert the wet steam to dry steam, generated by a boiler. It is different from a boiler in a way that, boiler utilizes both sensible heat as well as latent heat to convert water into steam while superheater utilizes only sensible heat to superheat the steam in order to increase its enthalpy.



The platen superheater is composed of steel pipe with outer diameter of 32 ~ 42mm and header, which is generally suspended at the upper part of furnace or furnace outlet. The number of tubes in each screen is generally 15 ~ 30, which is determined according to the required steam flow rate

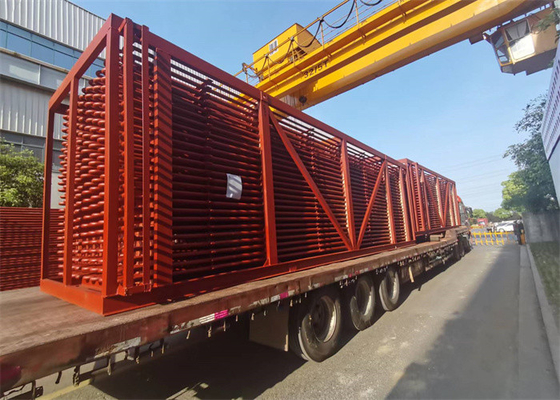

High Pressure Boiler Superheater Reheater Assemble In Steam Power Plant 0

The outside diameter of the pipe is generally 30-60mm. The convection superheater is the most commonly used, and the serpentine tube type is adopted. It has a relatively dense tube group, which is arranged in the flue of 450-1000 ℃ flue gas temperature, and is subject to the transverse and longitudinal erosion of flue gas. The flue gas mainly transfers heat to the pipe by convection, and some of it absorbs heat by radiation

Description
Boiler superheater
Material
Alloy steel, Carbon steel etc.
Material Standard
ASTM, EN or ISO etc.
Structure Type
Tube Coil
Dimension
Customized
Supply Ability
500 ton per month
Manufacturing Process
Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging
Thermal Efficiency
Around 95%



Specifications
Of Superheater And Reheater




Description Heat boiler economizer, steam boiler economizer, oil boiler economizer, coal steam boiler economizer, Gas boiler economizer,etc
Material Alloy steel, Carbon steel, SA210C ,SA213T22, etc.
Material standard ASTM, EN or ISO etc.
Dimension Customization
Weight

Min: 10 ton
Max.:1000 ton

Smelting Process: EF+LF + VD
Process Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
UT standard ASTM A388 or EN10228, etc


ADVANTAGES
Of Superheater And Reheater


1. The economizer is to heat the boiler feed water (softened water) to raise the feed water temperature, instead of heating the boiler water.Absorbing the waste heat of flue gas to heat the boiler, reducing the heat loss, improving the efficiency of the boiler and saving coal accordingly.

2. The economizer shall install the safety valve and temperature gauge separately. In case of water shortage accident of the boiler, the bypass waterway of the economizer shall be opened immediately and the inlet and outlet of the economizer shall be closed.

3. The feed water is heated in the economizer before entering the evaporative heating surface to reduce the heat absorption of water in the evaporative heating surface, which is equivalent to replacing part of the evaporative heating surface with the economizer.



4. The heating surface of the economizer is much cheaper than that of the evaporating heating surface.
High Pressure Boiler Superheater Reheater Assemble In Steam Power Plant 1

Company Introduction


Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a
professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all
kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters,
headers, spiral fin tubes, H-fin tubes, heat pipes etc.
We are the qualified supplier for the following large boiler manufacturers in China:

  • Shanghai Boiler Works Ltd.
  • Hang Zhou Boiler Group Co. Ltd.
  • Harbin Boiler Co., Ltd.
  • Dong Fang Boiler Group Co., Ltd.
  • Wuxi Huaguang Industrial Boiler Co., Ltd.
  • Jiangxi Jianglian Energy & Environment Co., Ltd.
  • Dalian Boiler Works
  • Suzhou Hailu Heavy Industry Co., Ltd.
