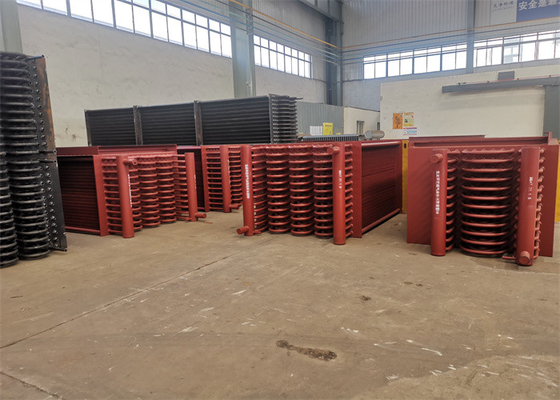

Natural Circulation Steel Fin Tube CFB Boiler Economizer With Header ASME Standard
Product Details
| Material: | Carbon Steel | Usage: | Power Plant/CFB Boiler |
|---|---|---|---|
| Type: | Natural Circulation | Structure: | Hot / Water Tube |
| Output: | Hot Water/Steam | Fuel: | Coal/Gas/Oil-fired, Water Heat |
| Highlight |
Natural Circulation Stainless Fin Tube,Stainless Fin Tube Economizer,CFB Boiler Stainless Fin Tube |
||
Product Description
Natural Circulation SA-106B Steel Fin Tube Economizer With Header ASME Standard
Functions of Boiler Economizer
There are three stages from the feed water in the boiler heated into superheated steam:feed water preheating, evaporation, and superheating. The three stages are finished on three different heating surfaces. The boiler steam and water circuit are composed of the three different heating surfaces as well as their connecting pipes. Boiler economizers are one of them, and it is right the equipment to preheat the feed water. Thus, it is the heating surface with the lowest temperature for boiler working fluid in the boiler steam and water circuit. The working fluid passing through this equipment is monophasic water(non-boiling economizer).
We can summerize the functions of economizers as below:
1. fuel saving: the economizers are placed at the rear part of boilers. This way can decrease the smoke and gas temperatures, thus to save fuels.
2.improve the working conditions of steam drums: due to economizers, the feed water temperature is increased when entering the steam drum. It reduces the temperature difference between the feed water and steam drum wall as well as steam drum thermal stress, so that it improve the working conditions of steam drums and increase the service life.
3.reduce the boiler manufacturing cost: for the feed water is heated in the boiler economizers. The use of low temperature spare parts as boiler economizers to replace some of high-priced high temperature water wall panels reduces the cost to manufacture boilers.
Product Description
·Boiler economizers reuse exhausted flue gas to pre-heat the feedwater entering the boiler.
·Essentially a mini-heat exchanger, economizers improve boiler performance while increasing fuel efficiency.
·By rapidly increasing feedwater temperature through captured flue gas, economizers also provide a significant improvement in steam generation and response time.
Technical specifications
Material Structure
Consists of a serious of spiral fin tubes, the headers of inlet and outlet, bend, frame and other auxiliaries.
Structure Arrangement
In line / staggered arrangement.
Function
(1) The economizer is a steam generation system as like a boiler. when the exhaust gas discharge from the engine cylinder through the exhaust valve it goes to the boiler for generate steam by heating of water.
(2) After those gas it goes through the economizer the remaining exhaust gas temperature is heated the water in economiser. it help to generate steam, and it is improving the efficiency and save the fuel consumption
(3) An economizer uses the waste heat from the boiler exhaust, that would otherwise be lost to atmosphere to (in most cases) preheat the feed water into the boiler.This improves the boiler efficiency and reduces fuel costs.
Variety
Utility Boiler Economizer
| 1 | HDB produces economizers for utility boilers, which includes boilers fueled by coal, wood, oil, or other solid fuels to produce electricty from the boiler's high pressure steam. |
| 2 | These economizers are usually located in the back pass of the boiler and oriented with the tubes running horizontally.The boiler feedwater runs through the economizer circuits in the opposite direction of the gas flow (called counterflow). |
| 3 | Bare tubes are typically utilized in order to minimize ash fouling, but some boiler OEM's design their economizers with finned tubes, either spiral or long finned. |
| 4 | HDB can produce economizer elements with either bare, spiral finned, or long finned tubes, and if you prefer, re-design your unit to one of the other tube-types. HDB can also fabricate replacement headers for all utility boiler economizers. |
Package Boiler Economizer
| 1 | HDB has unique manufacturing capabilities that the Optimus engineers take full advantage of when designing sulfuric acid plant economizers and superheaters. |
| 2 | Often this allows the Optimus units to be configured for higher heat transfer efficiencies which results in a reduced surface area requirement and, consequently, a lower-priced product. |
| 3 | HDB utilizes its on-site capabilities to fin and bend the tubes, machine and fabricate the headers, drill the tubesheets, cut and prep all casing materials, and perform all of the pressure part and casing welds. |
| 4 | This gives HDB more control of the manufacturing sequence and schedule which has helped us achieve a remarkable record of on-time delivery performance. |
HRSG Economizer
| 1 | Economizers for today's HRSG modules are configured with fintubes that hang vertically. HDB has fabricated economizer coils for virtually all of the HRSG OEM companies and understands the unique features of each. |
| 2 | In many cases, utilities desire to upgrade their economizers from plain carbon steel to an alloy material to help resist flow accelerated corrosion (FAC) inside the headers and tube bends. |
| 3 | HDB is a one-stop shop for economizer fabrication because we prep all the materials and perform all of the pressure part and attachment welding, from finning the fintubes, fabricating the headers, and assembling the coil bundle. |
Manufacturing and acceptance criteria
| · | JB/T6512 "boiler with a high-frequency resistance welding spiral fin tube manufacturing technology conditions" |
| · | HG/T3181 "high-frequency resistance welding spiral fin tube" |
| · | JB/T6511 "spiral finned tube test technical conditions." |
| · | JB1611 "boiler tube mane box assembly conditions" |
| · | JB/T1612 "boiler pressurufacturing conditions." |
| · | JB16I3 "boiler pressure parts welding conditions." |
Parameters
| Name | Economizer |
| specifications of finned tube | unit(mm) |
| Bare pipe(od) | 25-165 |
| bare pipe(thick) | 2-8 |
| finned thicks | 0.6-3.0 |
| finned height | 5-30 |
| finned tube thread pitch | 5-30 |
| finned tube length | ≤12000 |
*Note:HD BOILER can bespoke special type of economizer according to customer's requirement.
