Sugar Mills Boiler Water Wall Panel Q235B Material
  • name
  • name
  • name

Sugar Mills Boiler Water Wall Panel Q235B Material

Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HDB
Certification
ISO9001, ASME, EN
Model Number
Membrane Wall
Product Name:
Membrane Wall
Weight:
120 Tons
Application:
Maintenance/Replacement
Keyword:
Boiler Water Wall Panel
Material Of Flat Bar:
Q235B
Packing:
Steel Frame
Highlight:

sugar mills Boiler Water Panel

,

sugar mills Water Wall Panel

,

Q235B Boiler Water Wall Panel

Product Description

Boiler Water Wall Panel for Maintenance and Replacement for Power Plant and Sugar Mills



Product Introduction



Water wall panels are the main heating surface of boilers, composed of numbers of rows of steel tubes, arranged around the boiler corner. Inside is the flowing water or steam, and the outside accepts the heat of the flame in the furnace of the boiler, mainly absorbing the radiation heat of the high temperature combustion products in the furnace. The working fluid rises in it and evaporates by heat.



The main type of water wall panels our company fabricate is membrane wall.





Membrane water wall is an air-tight structure consisting of pipes and fins.The advantages are less air leakage in furnace; can use pipe-laying wall, less load on steel structure and lower cost of boiler; easy to use suspension structure and improve thermal expansion system, suitable for large-scale mechanized production, high assembly rate, low heat storage capacity and shorten star-up and shutdown time. The disadvantage is that the manufacturing process is complex. Membrane water wall is often used in large capacity, high temperature and high pressure boilers





Sugar Mills Boiler Water Wall Panel Q235B Material 0





Specification

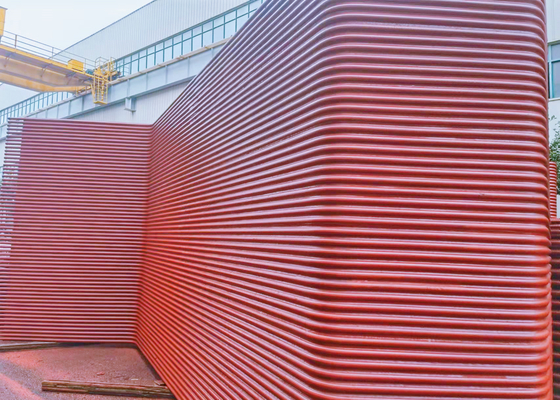

The pictures above are membrane walls for one Pakistan project with details of specification below:

Name Memebrane Walls
Material ASME SA192M and Q235B
Tube size 63.5*4.5mm
Standard As per ASME/GB standard
Equipment Automatic production equipment
Application Maintenance of Sugar Mill Boiler and Power Plant Boiler
