|Standard:||ASME Standard Or GB||Material:||ND Steel / Carbon Steel / Alloy Steel Etc|
|Bare Tube:||Cold Finished||Type:||Boiler Part|
Bending painted boiler fintube,
H type painted boiler fintube,
ASME economizer finned tube

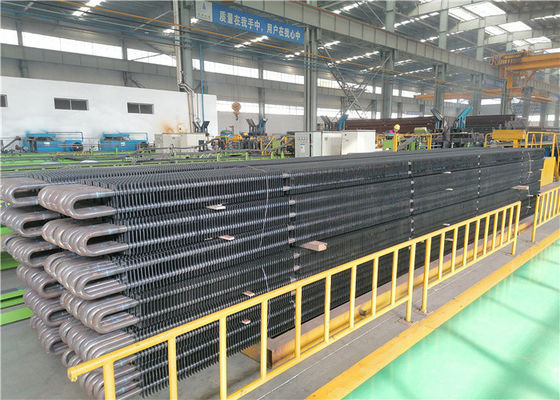

ASME Boiler Fin Tube With Bending For Heating Transfer System
Fin Tube Description
In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.
H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.
H-type tube, has a high rate of fusion welds and weld tensile strength. There is little contact resistance, and heat transfer performance and scalability are additional advantages. The H-fin tube is assembled with the H economizer, which has high efficiency, low resistance, and light weight. Compared to the traditional fin tube or spiral tube the H-fin tube can greatly expand the heating surface. When the extent of the effect of heat transfer is the same. The H-fin tube economizer takes up less space. In addition to the H economizer, H superheater, H air heater, and many other products. The H-fin tube has been included in the “Chinese high-tech product catalog”
1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.
2.Fins are used to increase the effective surface area of heat exchanger tubing.
3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.
|Medium||air, flue gas, thermal oil, water, brine, refrigerant, etc.|
|Temperature||standard heat exchanger to 560 ° C by special materials can be higher|
|Pipe materials||carbon steel, stainless steel, alloy or special materials|
|Ribs materials||carbon steel, stainless steel, non-ferrous metal, alloy or special materials|
|Thermal insulation &Surface treatment||according to customers specification
1.Anti - corrosion
3.Lower contact resistance
5.Ability to prevent ash accumulation
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
1.Our products can be modified according to our customers' needs and the situation.
|1||Impact test and Strength calculation report with applied materials information.|
|2||100%NDT(non-destructive inspection) report of steel plate, tube and electrode.|
|3||X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler.|
|4||Hydraulic test report: ensure the standard working pressure and safety.
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
