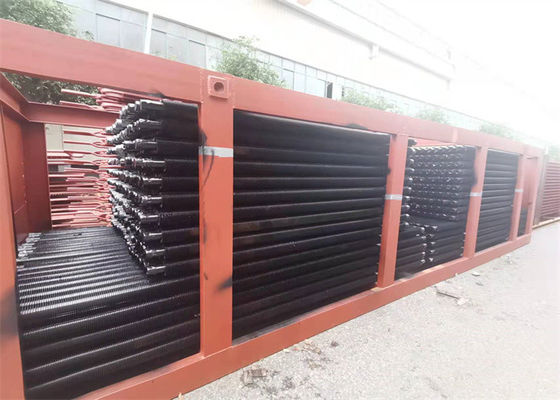

Stainless Steel Laser Welded Cooling Delivery Economizer Fin Tube
Product Details
| Application: | Boiler System | Specification: | Customized |
|---|---|---|---|
| HS Code: | 3215960855 | Surface Treatment: | Painted |
| Function: | Heat Exchanger | Transport Package: | Seaworthy Packing |
| Highlight |
Cooling Delivery economizer fin tube,Laser Welded economizer fin tube,Laser Welded serrated fin coil |
||
Product Description
Stainless steel finned tubes laser welded cooling Delivery of laser-welded finned tubes fin tube
Product Description
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running.
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage.
3. Improve the heat transfer efficiency.
4. Structure arrangement: In line or staggered arrangement.
Application
Aftercoolers, air coolers, air heaters, charge air chillers, condensers, convection heaters, electric heaters, evaporators, fluid coolers, gas coolers, heat pipes, hydrogen coolers, industrial tumble dryers, intercoolers, immersion heaters, oil coolers, radiators, refrigeration, solvent recovery and steam to air heat exchangers.
Technical parameters
| PRODUCT | TYPE | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE | FIN SIZE |
|
Heat Exchanger Finned Tube |
Extruded Fin Tube |
All Kind of Material can be applied |
Aluminum A1100 |
15.88~50.8 |
7~11.5FPI |
| Fin Height Max 16mmH | |||||
| L-Foot Fin Tube |
All Kind of Material can be applied |
Copper C1100, C1220 |
12.70~50.8 |
7~11.5FPI | |
| (Wrap On Type) | Fin Height Max 16mmH | ||||
| G-Fin Tube (Embedded Type) | Aluminum A1100, A1050, A1060 | ||||
|
High Frequency Welded Finned Tube |
A179 Carbon Steel Tube |
Carbon Steel Tube |
12.70~160 |
1.5~7FPI | |
| Stainless Steel Tube | Stainless Steel Tube | 0.8~3.2mm. Thickness | |||
| Alloy Steel Material | Alloy Steel Material | ||||
| Integral Copper & Copper Alloy High Finned Tube | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88~22.23 | 5~9FPI | |
| Max 12mm. H | |||||
|
Oval Finned Tube |
Carbon Steel Tube | Carbon Steel Tube |
All Size Available |
5~15FPI |
|
| Stainless Steel Tube | Stainless Steel Tube | ||||
| Alloy Steel Material | Alloy Steel Material | ||||
| Copper & Copper Alloy Tube | Copper & Copper Alloy Tube | ||||
| Monometallic Fin Tube | Low Fin Tube | Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. | -- |
9.52~40 |
12, 16, 19 28 FPI, etc. |
| Turbo-C Tube | |||||
| Turbo-E Tube | |||||
| Corrugated Tube | All Kind of Material | -- | 6.35~40 | 2~9FPI |
Fin tube workshop
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
