SA192M Q235B ASME Standard Boiler Economizer For Feed Water Heating

Products

Flue Gas Cooler

hdb@boilerfabrication.cn

86-15151590099

Contact Now

SA192M Q235B ASME Standard Boiler Economizer For Feed Water Heating

MOQ:	5 tons
Standard Packaging:	Sea worthy Packing for Export
Delivery Period:	40 Days

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HD Boiler

Certification

ASME, ISO9001, EN

Model Number

Supeheater Coil

Application:

Power Plant Boilers And Industrial Boilers

Material:

SA192M And Q235B

Product Name:

Economizer

Standard:

Keywords:

Economizer Coil

Dimension Of Tube:

38.1*3.2

Highlight:

Q235B Boiler economiser coil

SA192M Boiler economiser coil

ASME Standard Boiler economiser coil

Product Description

ASME Standard Boiler Economizer for Sugar Mill Boiler Made of SA192M and Q235B

Description

Boiler economizer is kind of heat exchanger to heat the feed water using the flue gas heat. The flue gas coming from the tube outside is up and down cross-flow scrubbing the tube bundle, passing the heat to the tube wall. The water is flowing from bottom to top, and absorts the heat from the tube wall, and its temperature is getting high. This way not only can countercurrent heat transfer to save metal consumption, but also is good for water/steam to flow and exhaust as well as decreasing corrusion. One more, this way works well for dust cleaning.

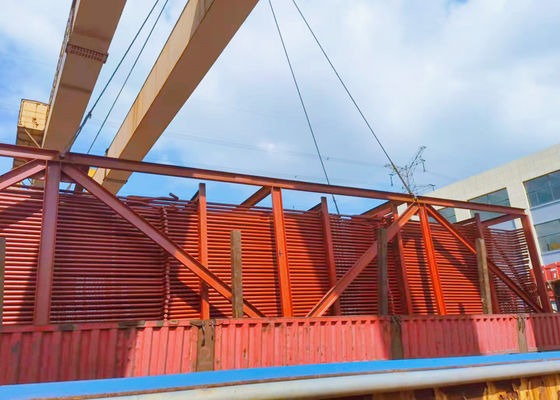

SA192M Q235B ASME Standard Boiler Economizer For Feed Water Heating 0

Diameter	32Φ 38Φ
Type	Casting iron economizer;bare tube economizer;finned tube Economizer;spiral finned tube economizer
Fin height	Less than 17mm
Fin pitch	2.1-5mm
Fin thickness	3-4mm
material	Tube:Carbon steel,alloy steel, customized Fin:copper;Aluminum
advantages	1.better product quality and longer service life. 2.energy conservation and environmental protection. 3.significantly improve cycle efficiency.

The economizer can absorb the heat of high temperature flue gas,reduce the exhaust temperature,save energy,and improve the efficiency of boiler.

Non-standard size please provide these parameter

Boiler economizer(gas liquid heat exchanger)design
Flue gas inlet(temp.)	Flue gas outlet(temp.)	Liquid inlet(temp.)	Liquid outlet(temp.)	Flue gas flow
ºC	ºC	ºC	ºC	m3/h
