CFB Boiler Dedusting Cyclone Particle Separator High Speed Rotating ASME Carbon Steel

Products

Flue Gas Cooler

hdb@boilerfabrication.cn

86-15151590099

Contact Now

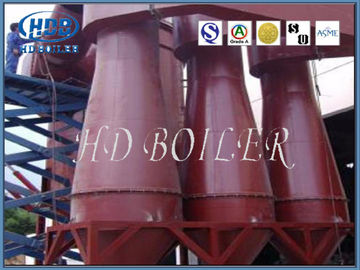

CFB Boiler Dedusting Cyclone Particle Separator High Speed Rotating ASME Carbon Steel

MOQ:	1 set
Price:	USD120,000
Standard Packaging:	seaworthy packing for exporting
Delivery Period:	Within 120 days after getting the down payment
Payment Method:	L/C, T/T
Supply Capacity:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HD Boiler

Certification

ISO9001 , EN , TUV , ASME

Model Number

HDBCS20210911

Weight:

Customized

Material:

Cyclonic Separator,Metal Or Other Material

Main Function:

Industrial Dust Treatment,Removing Industrial Dust

Color:

Customer Request

Dedusting,building Materials,pharmaceutical

Usage:

Filter Industry Dust

Highlight:

CFB Boiler Cyclone Separator

Dedusting Cyclone Separator

boiler fabrication cyclone separator

Product Description

CFB Boiler Cyclone Particle Separator High Speed Rotating ASME Carbon Steel

Product Introduction

A high speed rotating (air)flow is established within a cylindrical or conical container called a cyclone. Air flows in a spiral pattern, beginning at the top (wide end) of the cyclone and ending at the bottom (narrow) end before exiting the cyclone in a straight stream through the center of the cyclone and out the top.
Larger (denser) particles in the rotating stream have too much inertia to follow the tight curve of the stream and strike the outside wall, falling then to the bottom of the cyclone where they can be removed.
In a conical system, as the rotating flow moves towards the narrow end of the cyclone the rotational radius of the stream is reduced, separating smaller and smaller particles.

Product Principle

1	Cyclonic separation is a method of removing particulates from an air, gas or liquid stream, without the use of filters, through vortex separation.
2	When removing particulate matter from liquids, a hydrocyclone is used; while from gas, a gas cyclone is used.
3	Rotational effects and gravity are used to separate mixtures of solids and fluids.
4	The method can also be used to separate fine droplets of liquid from a gaseous stream.

CFB Boiler Dedusting Cyclone Particle Separator High Speed Rotating ASME Carbon Steel 0

Attention

Cyclonic separation can eliminate particulates, such as dirt and dust, from a stream of air, gas or liquid. Engineers sometimes call these tornadic dust busters centrifugal separators. That's because at the root of these machines is something called centrifugal force.

1	Although there are four commonly used cyclone separators, their operating principles based on that of the conventional cyclone, are very similar.
2	In the conventional cyclone, the gas enters a cylinder tangentially, where it spins in a vortex as it proceeds down the cylinder.
3	A cone section causes the vortex diameter to decrease until the gas reverses on it and spins up the center to the outlet pipe or vortex finder.
4	A cone causes flow reversal to occur sooner and makes the cyclone more compact Dust particles are centrifuged toward the wall and collected by inertial impingement.
5	The collected dust flows down in the gas boundary layer to the cone apex where it is discharged through an air lock or into a dust hopper serving one or more parallel cyclones .
6	Although conventional cyclones can be built to larger diameter, they are commonly 600 to 1600 mm in diameter.

Advantages

1. Low capital cost.

2. Ability to operate at high temperatures.

3. Can handle liquid mists or dry materials.

4. Low maintenance requirements (no moving parts).

5. Small footprint - requires relatively small space.

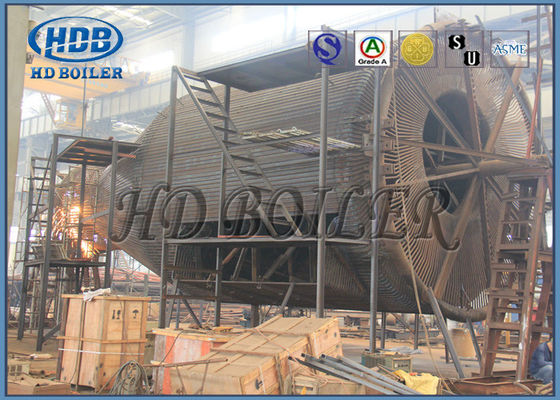

Workshop

CFB Boiler Dedusting Cyclone Particle Separator High Speed Rotating ASME Carbon Steel 2

Company Information

Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000 ㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.
