Detailed Product Description
Product Name: Boiler Water Wall Panel NDE: 100% PT,100 RT,100% UT
Application: Sugar Mill And Industrial Boilers Keyword: Membrane Wall
Welding Technique: Submerged Arc Welding Function: Heating Surface
High Light:

TUV boiler panel

,

Submerged Arc Welded Boiler Wall

,

Submerged Arc Welded Boiler panel

Carbon Steel Submerged Arc Welding Boiler Membrane Wall For Industry 300T


Product Description of Membrane Water Wall



If according to the structure type, there are three main types: bare tube type, membrane type, and prick tube type.Bare tube type are composed of the whole row of seamless steel tubes with the simplest structure. Membrane water wall is a kind of joint welding of many rolled finned tubes of water wall to form a sealed combined heating surface. It can not only improve the air tightness of the furnace, reduce air leakage, but also protect the furnace wall, reduce the weight of the furnace wall and simplify the structure.



Membrane water wall is an air-tight structure consisting of pipes and fins.The advantages are less air leakage in furnace; can use pipe-laying wall, less load on steel structure and lower cost of boiler; easy to use suspension structure and improve thermal expansion system, suitable for large-scale mechanized production, high assembly rate, low heat storage capacity and shorten star-up and shutdown time. The disadvantage is that the manufacturing process is complex. Membrane water wall is often used in large capacity, high temperature and high pressure boilers.



The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.



According to the different manufacturing process, the membrane water wall can be divided into three types(see Fig. 1):1.rolled fin tubes are welded in rows, with less welding workload, but the fin tubes are expensive. 2.bare tube and fin(flat steel) are welded in rows, which has low material cost and can easily meet the requirements of various pitches, but flat steel requires high precision and finishing equipment.3.Bare tube fusion welding,the fins between tubes are formed by filling the welding wire, mostly used for the small pitch between the tubes. The pitch between tubes of membrane water wall is related to factors such as boiler pressure and furnace heat load, usually s/d is 1.2-1.5.





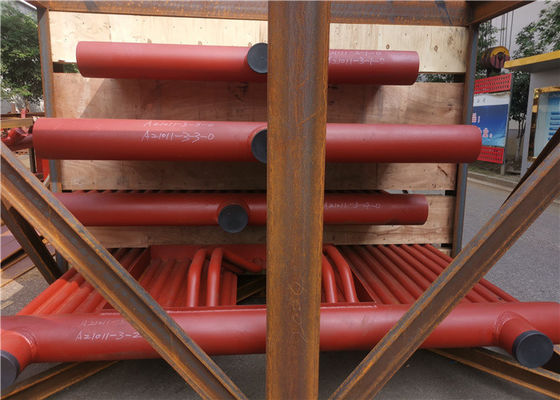

TUV 300T Carbon Steel Submerged Arc Welded Boiler Membrane Wall 0

We are manufacturing and supplying a comprehensive range of Waterwall Panels. The tubes offered by us are known to withstand a great internal pressure as a continual strip of fin material is wound spirally on the tube. These tubes are known to provide heat uniformly that result in an increased heat output.





Various Boiler Water Wall Panel Can Be Fabricated

  • Membrane boiler water wall panel: spot welds many rolled finned tubes into a sealed combined heating surface, which improves the airtightness of the furnace and reduces air leakage.
  • Studded water wall tubing: welds pins of 20 to 25 mm in length and 6 to 12 mm in diameter on the water wall tube, and then applies a chrome ore refractory plastic to reduce the water wall panel’s heat absorption, and increase the temperature in the combustion zone. It is appropriate for situations where it is difficult to set fire to the fuel, as well as specific slag tapping furnaces.
  • Plain tube boiler water wall panel: composed of a whole row of seamless steel pipes, the simplest structure.
  • Wall-attached boiler water wall tubing: embedded in the inner wall of the furnace wall, single-sided heat absorption.
  • Double-sided heated water wall panel: installed in the middle of the large boiler furnace, which is divided into two parts that are independent of each other, and both sides are heated.

Materials for water wall panels

20# Steel, SA192, SA 106B, 15CrMoVG, 12Cr1MoV

Standards
ASME Code standard, GB Standard

Quality inspection
MT, RT, Hydraulic test

TUV 300T Carbon Steel Submerged Arc Welded Boiler Membrane Wall 1



Specification



The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber .

Name Water wall panels
Material ASME/GB standard carbon steel or alloy steel
Tube size Customized
Standard As per ASME/GB standard
Equipment Automatic production equipment
Application Maintenance of Sugar Mill Boiler and Power Plant Boiler
