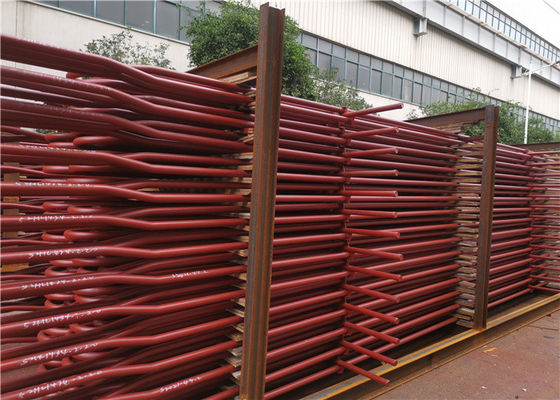

SA213T22 Alloy Steel Power Station Boiler Superheater
Product Details
| Type: | Pressure Parts | Pressure: | Low / High Pressure |
|---|---|---|---|
| Range Of Applications: | Industrial / Power Station | Specification: | Customized |
| Condition: | New | Surface Treatment: | Painted |
| Style: | Horizontal And Vertical | Packing: | Iron Frame Package |
| Highlight |
SA213T22 boiler superheater,Vertical boiler superheater,SA213T22 steel superheater |
||
Product Description
SA213T22 alloy steel power station boiler superheater for biogas steam boiler boiler spare parts
Description
The Steam Superheater is a coil type heat exchanger which is used to produce superheated steam or to convert the wet steam to dry steam, generated by a boiler. It is different from a boiler in a way that, boiler utilizes both sensible heat as well as latent heat to convert water into steam while superheater utilizes only sensible heat to superheat the steam in order to increase its enthalpy.
Specifications
| Description | Boiler superheater |
| Material | Alloy steel, Carbon steel etc. |
| Material standard | ASTM, EN or ISO etc. |
| Structure Type | Tube Coil |
| Dimension | Customization |
| Supply ability | 500 ton per month |
| Manufacturing process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →Bending tube→Assembly→Inspection →RT→Heat treatment (annealing)→Hydraulic pressure test→Painting→ Packaging |
| Thermal Efficiency | Around 95% |
Function
Superheater is to increase the temperature of the steam above its saturation point.
Reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.
Certification
Features
1. As the flue gas across tube, the flue gas side of the heat capacity of exile to strengthen, under the same heat transfer coefficient, wall temperature vertical preheater than ordinary steel increased 10-30 Degree Celsius, the overall heat transfer coefficient of about 20.3-24.2W;
2. Two horizontal sealing tube box, the sealed tube box structure welded high strength, pipe damaged or the overall change can only block, and heat-packing seal, can only replace the damaged pipe tube, easy maintenance.
3. The tube air preheater is mainly used for boiler preheater, the low temperature.
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
