Place of Origin: | Zhangjiagang,China |
Brand Name: | HD BOILER |
Certification: | ISO9001 , SGS , TUV , ASME , EN |
Model Number: | Water Wall Panel |
Minimum Order Quantity: | 5 tons |
---|---|
Price: | Negotiable |
Packaging Details: | Iron Frame Package |
Delivery Time: | 60 Days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 800 Tons / Month |
Product Name: | Boiler Water Wall Panel | Standard: | GB |
---|---|---|---|
Application: | Power Plant Boiler | Keywords: | Boiler Water Wall |
High Light: | Steel Tube steam Boiler Wall,72 Tons steam Boiler Wall,ASME Power Plant Boiler wall |

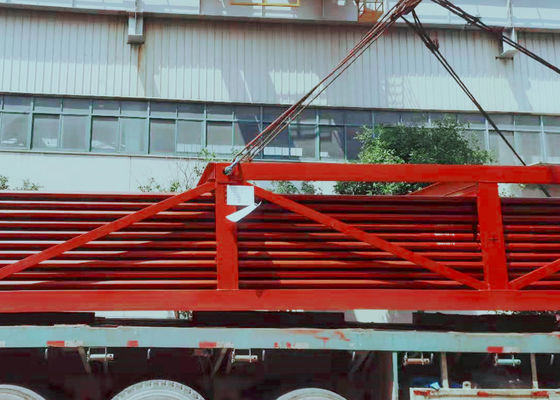

72 Tons Boiler Membrane Water Wall Panel Made of 20G Steel Tube for Power Plant Boiler
Introduction
Water wall panels are used in modern industrial boilers to replace steam generating tubes. They are designed to absorb high temperature radiant heat given off by the flame in the fuel chamber, and reduce heat loss caused by the air tightness. We manufacture boiler tubes of the water wall panels in a variety of shapes and sizes to meet customer requirements, and all are processed using automatic fin to tube welding machines and large tube benders.
Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.
Application
1 | Energy saving enviromental protection china supplier membrane water wall for CFB boiler are membrane walls that are made of tubes welded together with or without a strip of metal in between. |
2 | These walls form the enclosure of the coal combustion chamber. |
3 | Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler. |
Specification
The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber .
Name | water wall panels |
Material | ASME standard carbon steel or alloy steel |
Tube size | Customized |
Standard | As per ASME standard |
Equipment | Automatic production equipment |
Application | Maintenance of Sugar Mill Boiler |
