Carbon Steel SA210A1 ASME Superheater Coil For 25TPH Coal Fired+Biomass Boiler

Carbon Steel SA210A1 ASME Superheater Coil For 25TPH Coal Fired+Biomass Boiler

  • Carbon Steel SA210A1 ASME Superheater Coil For 25TPH Coal Fired+Biomass Boiler
  • Carbon Steel SA210A1 ASME Superheater Coil For 25TPH Coal Fired+Biomass Boiler
  • Carbon Steel SA210A1 ASME Superheater Coil For 25TPH Coal Fired+Biomass Boiler
  • Carbon Steel SA210A1 ASME Superheater Coil For 25TPH Coal Fired+Biomass Boiler
Carbon Steel SA210A1 ASME Superheater Coil For 25TPH Coal Fired+Biomass Boiler
Product Details:
Place of Origin: China
Brand Name: HDB
Certification: ISO9001 , TUV , ASME , EN3834
Model Number: Superheater coil 08061
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: Negotiable

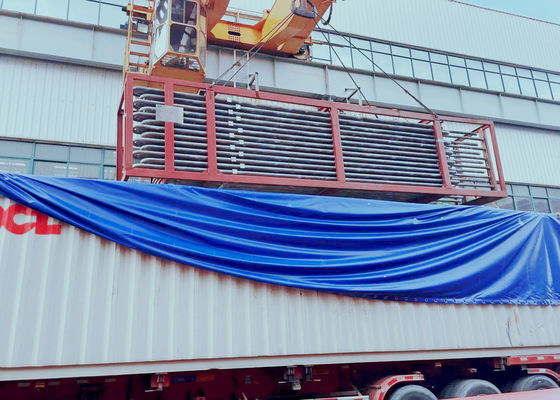

Packaging Details: Iron Frame Packing
Delivery Time: Within 60 days after getting the down payment or L/C
Payment Terms: L/C, T/T
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Type: Natural Circulation Material: Carbon Steel, Stainless Steel, Alloy Steel
Certification: ISO9001,CCC, Grade A, ASME, EN3834 Usage: Power Station, Sugar Mill, Cement Mill
Color: As Per Client's Requirements Condition: New
High Light:

25TPH Superheater Coil

,

Coal Fired Boiler Superheater Coil

,

Coal Fired reheater coil

Carbon Steel SA210A1 ASME Superheater Coil For 25TPH Coal Fired+Biomass Boiler



Parameters: Superheater coil

Material carbon steel, alloy steel , or durable heat steel
Tube OD 8-200mm
Tube W.T. 0.6mm- 40mm





Working Principle



Superheater is the part that heats the steam from the saturation temperature to the superheater by the boiler. It is also called the superheater.
Superheater can be divided into convection type, radiant type and semi-radiant type according to heat transfer mode;
According to the characteristics of the structure, it can be divided into serpentine tube type, screen type, wall type and wall type.
They all consist of a number of parallel pipes and inlet and outlet manifold.
Most industrial boilers do not have superheaters because many industrial processes and utilities require only saturated steam.
Superheaters are generally installed in power stations, locomotives and Marine boilers to improve the thermal efficiency of the entire steam power plant.



Product Introduction



Reheater is actually a kind of steam superheater which heats the low-pressure steam after work and reaches a certain temperature. The role of reheater further improves the thermal efficiency of the circulation in power plant, and makes the steam temperature of the last stage blade of steam turbine controlled within the allowable range.
A reheater is a boiler that converts steam from a steam turbine into superheated steam.
The reheater has two functions: one is to reduce the moisture of water vapor, which is beneficial to protect the turbine blade;
Second, the relative and absolute internal efficiency of steam turbine can be improved.



Details

  • Superheater

Generally 30 ~ 60 mm.The most common type of flow superheater is serpentine tube.It has a more intensive tube group, decorate in 450 ~ 1000 ℃ flue of the flue gas temperature, flue gas of vertical and lateral erosion.The flue gas mainly transfers the heat to the pipe by convection, and some of the heat is absorbed by radiation.The plate-type superheater consists of a plurality of tube screens, arranged in the upper part of the furnace or at the outlet, belonging to the radiation or semi-radiation type superheater.The former absorbs radiant heat from the furnace flame, while the latter also absorbs some convection heat.In power station boilers above 10 mpa, both screen type and serpentine type superheater are commonly used to increase heat absorption.The wall superheater applied on the inner wall of the furnace is radiant superheater, which is seldom used.The wall-mounted superheater is used in the large capacity power station boiler to form the wall of the furnace top and convection flue.The picture shows the arrangement of several superheater.The small capacity industrial boilers with superheater can meet the requirements only with single stage superheater.



  • Reheater

The reheater layout follows the superheater layout, including convection, radiation and semi-radiation.

The convection reheater has reverse flow, downstream flow and mixed flow, single coil, double coil, multi-coil, parallel and staggered, vertical and horizontal type, parallel to the front wall and perpendicular to the front wall.Convection reheater is the main reheater that absorbs convection heat.

Radiant reheater refers to the reheater absorbing furnace radiation.

Semi-radiant reheaters (plate superheater) refer to reheaters that absorb more radiation from the furnace (more than 1/2 of the total heat).

The material selection principle of reheater is the same as that of superheater. Since reheating steam is inferior to superheater in cooling capacity, the design wall temperature is generally higher than that of superheater of the same temperature level.Metal tubes of high temperature reheaters are generally made of alloy steel (metal tubes containing more than 5% of alloy elements).For example, 12CrlMoV, steel 102, sa213-t91, sa213-tp304, sa213-tp347, etc.






Qur Company



Hua Dong Boiler has become a major qualified supplier of domestic and foreign boiler manufacturers and energy companies, including American Covanta Energy Company, AMEC Foster Wheeler Company, ALSTOM, Oriental Boiler Limited by Share Ltd., Harbin electric LLC, Wuxi Hua Guang Boiler Co., Ltd., Hangzhou Boiler Group Co., Ltd.
