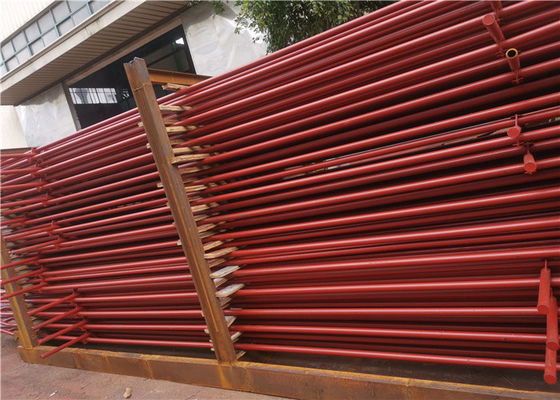

ASME Horizontal Layout Bending Tube Reheater Economizer Coil

ASME Bending Tube Superheater Coil for Power Plant Heat Exchanger




Superheater Coil Introduce

Functions of superheaters and reheaters:

Superheaters and reheaters are important parts for the heating surfaces, used to increase steam temperature, aiming to improve steam enthalpy and further to increase the thermal circulation efficiency for power station.

Superheaters work to heat surnatured steam to superheated steam with a certain tempetature. When boiler loads or other working conditions change, it is necessary to make sure superheated steam temperature to be normal, and within allowable range of temperature variation.

Superheater
Superheater is a part of a boiler that heats the steam from saturation temperature to the overheating temperature. It is also called a steam superheater.Superheater can be divided into convective type, radial type and semi-radial type according to heat transfer mode;According to the characteristics of the structure, it can be divided into serpentine pipe type, screen type, wall type and wall type.They are made up of parallel pipes and inlet and outlet manifold.

Reheater
Reheater is a kind of steam superheater that reheats the low-pressure steam that has done work and reaches a certain temperature. The role of reheater further improves the thermal efficiency of power plant circulation, and makes the steam temperature of the final stage blade of steam turbine controlled within the allowable range.A reheater is a boiler that heats steam from a steam turbine to superheated steam.There are two functions of reheater: one is to reduce the humidity of steam, which is conducive to the protection of turbine blades;Second, the relative and absolute internal efficiency of steam turbine can be improved.

Product Advantages

Superheater

1. The dry saturated steam drum to further make the superheated steam heating. When the soda coexist, the soda heating the mixture, add heat can only be used to make soda water evaporate into steam in the mixture, and cannot make steam temperature of superheated steam. To get to the superheated steam, the commonly used method is to steam separated from the mixture of soda, for its further heating, accomplish this task components become the superheater.

2. reduce the temperature of flue gas, recover the heat in the flue gas, improve boiler efficiency.

Reheater

1. Reduce the humidity of steam, which is conducive to the protection of turbine blades.

2. Relative and absolute internal efficiency of steam turbine can be improved.



Product Details


Type Advantages Disadvantages Supporting Method

Pendant-type


Design Structure

1. heating saturated steam, temperature up to 900 degree C.
2. high efficiency, >90%.
3. high speed heating.
4. design with stainless steel.
5. long design service life, 15 years.





Company Facilities And Certifications

• Fabrication area of 200,000 square meters
• 150 Engineers
• 600 Coded welders
• 60 Licensed Inspectors (including NDT level-lll instructors)
• Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
• ISO 90001:2008 Quality System
• ASME Certificate of Utility Boiler
• ASME‘S’ , ‘U’ and NB stamp authorization
