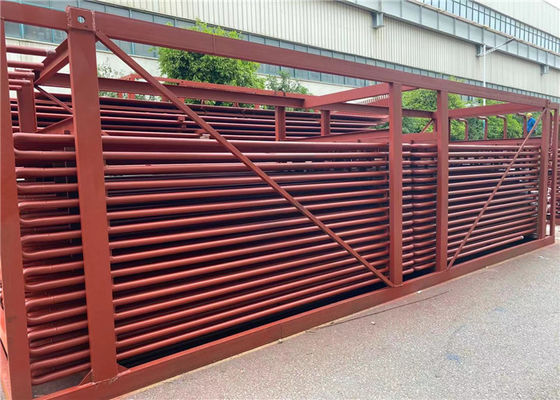

ASME Waste Incineration Platen Radiant Superheater Energy Saving
  • name
  • name
  • name
  • name

ASME Waste Incineration Platen Radiant Superheater Energy Saving

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Seaworthy packing
Delivery Period: 50 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 Tons / Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HD BOILER
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
superheater
Material:
Carbon Steel,Alloy,Stainless Steel
Surface Treatment:
Painted
HS Code:
3215960855
Packaging:
Iron Frame Packing
Available:
Energy Saving
Color:
Red / Grey Other Color
Condition:
New
Specification:
Customized
Highlight:

ASME radiant superheater

,

Waste Incineration radiant superheater

,

ASME platen superheater

Product Description


HD Boiler Co.,ltd High Pressure ASME Carbon Steel Waste Incineration Superheater Coil

Product Description

Superheaters are heat exchangers located in the upper part of the furnace that bring the steam to its live operating temperature with heat transfer occurring both by convection and radiation.



Specification

NameEconomizer
specifications of finned tubeunit(mm)
Bare pipe(od)25-165
bare pipe(thick)2-8
finned thicks0.6-3.0
finned height5-30
finned tube thread pitch5-30
finned tube length≤12000



Functions

Radiative superheaters are used as the first heat transfer surfaces after the furnace. Often a platen arrangement is preferred to create a fouling-resistant construction. Spacing in the first superheaters can be from 150 to 1000 mm. Superheaters are the hottest heat transfer surfaces in the boiler, so they are often built with temperature-resistant alloys. As these superheaters operate at flue gas temperature ranges of 800–1200°C, they often need to be built with corrosion resistance in mind. High-grade materials are expensive and require special welding techniques and often heat treatment. Superheater type, design, material, and construction methods always involve compromise to achieve the desired technical level at low cost.
ASME Waste Incineration Platen Radiant Superheater Energy Saving 0

Certification

ASME Waste Incineration Platen Radiant Superheater Energy Saving 1






Quality Control

1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization


Company

ASME Waste Incineration Platen Radiant Superheater Energy Saving 2
