TUV Carbon Steel Boiler Membrane Wall Panels Welded Structure

Products

Flue Gas Cooler

hdb@boilerfabrication.cn

86-15151590099

Contact Now

TUV Carbon Steel Boiler Membrane Wall Panels Welded Structure

MOQ:	1 Set
Price:	Negotiable
Standard Packaging:	Iron Frame Package
Delivery Period:	50 Days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	500 Tons / Month

Detail Information

Product Description

Detail Information

Place of Origin

Zhangjiagang,China

Brand Name

HD BOILER

Certification

ISO9001 , SGS , TUV , ASME , EN

Model Number

Furnace wall

Product Name:

Boiler Membrane Wall

Material:

Carbon Steel

Application:

Boiler Maintenance

Standard:

Packing:

Iron Frame

Painting:

As Per Requirements Of Customer

Highlight:

Carbon Steel Boiler Membrane Wall

TUV Boiler Membrane Wall

TUV water wall panels boiler

Product Description

Carbon Steel Boiler Membrane Wall for Maintenance of Sugar Mill in ASME Standard

Introduction

Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.

Specification

The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber .

Name	water wall panels
Material	ASME standard carbon steel or alloy steel
Tube size	Customized
Standard	As per ASME standard
Equipment	Automatic production equipment
Application	Maintenance of Sugar Mill Boiler

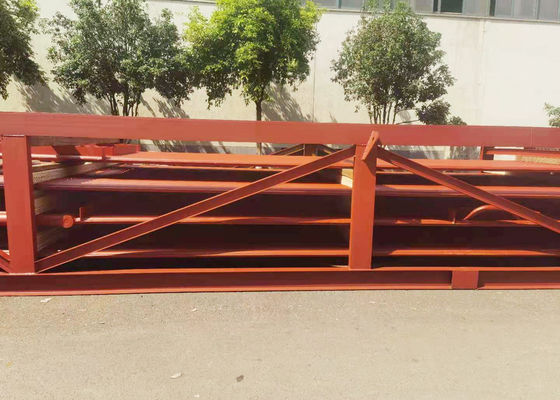

TUV Carbon Steel Boiler Membrane Wall Panels Welded Structure 0
Application

The water wall is the main radiation heat surface, arranged inside the boiler chamber and proceeds the heat exchange directly with the high temperature flame. The convection tubes are the convection heat surface of the boiler, arranged between the boiler chamber outlet and the end surface and proceed the heat exchange directly with the high temperature fume.

Description

1	Water wall panels are used in Waste Heat recovery boilers. We manufacture Water wall panels. These are fabricated out of carbon steel tubes to customers' drawings and specifications. Special care is taken for ovality and thinning at the bent portion, during fabrication.
2	We are manufacturing and supplying a comprehensive range of Waterwall Panels. The tubes offered by us are known to withstand a great internal pressure as a continual strip of fin material is wound spirally on the tube. These tubes are known to provide heat uniformly that result in an increased heat output.
3	The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.

The accessories and detailed information

A waterwall in a boiler is any furnace wall that is comprised of refractory and tubes in a water-tube boiler. The tubes are evenly spaced and generally connectto headers which in turn are connected back to the main generating bank of the boiler.
