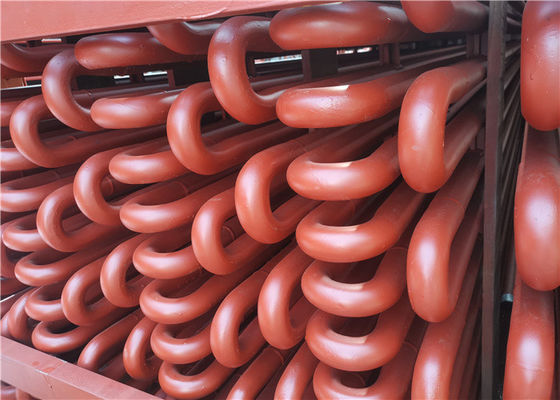

CFB Hot Water U Shape Boiler Plant Superheater Natural Circulation
Product Details
| Material: | Alloy Steel, Carbon Steel, SA210C SA213T22, Etc. | Usage: | Power Plant/CFB Boiler |
|---|---|---|---|
| Type: | Natural Circulation/Once Through | Structure: | Fire/Water Tube |
| Output: | Hot Water/Steam | Fuel: | Coal/Gas/Oil-fired, Water Heat |
| Dimension(L*W*H): | Customization | Weight: | Min. 10 Tons; Max. 1000 Tons |
| Highlight |
CFB boiler Plant Superheater,CFB boiler Superheater,Hot Water boiler Plant Superheater |
||
Product Description
ASME Carbon Steel Boiler Superheater And Reheater Coils
Superheater Coil Introduction
Superheaters and reheaters are specially designed to increase the temperature of the saturated steam and to help control the steam outlet temperature. They are simple single-phase heat exchangers with steam flowing inside and the flue gas passing outside, generally in the cross flow. Superheaters and reheaters are often divided into multiple sections to help control steam temperature and optimize heat recovery, and their heating surfaces can be arranged either horizontally or vertically. The physical design and location of the surfaces is dependent on the desired outlet temperature, heat absorption, fuel ash characteristics and cleaning equipment. The main components are usually manufactured from steel alloys, as both the superheater and reheaters are operated at high temperature.
Superheater Coil Details
|
1.Our products can be modified according to our customers' needs and the situation.
2.we design and manufacture safe,reliable and efficient products.HD BOILER has also completed stand-alone product quality assurance systems.
3.To ensure safety operation, the LT superheater uses SA210 Gr.A1 seamless steel tubes, and the HT superheater uses low-alloyed SA213 T22 seamless steel tubes.
Technical parameter
Features 1. The equipment body can be designed into many modules to ensure the long term and stable running; 2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage 3. Improve the heat transfer efficiency 4. Structure arrangement: In line or staggered arrangement |
|||||||||||
Manufacturing and acceptance criteria
| · | JB/T6512 "boiler with a high-frequency resistance welding spiral fin tube manufacturing technology conditions" |
| · | HG/T3181 "high-frequency resistance welding spiral fin tube" |
| · | JB/T6511 "spiral finned tube test technical conditions." |
| · | JB1611 "boiler tube mane box assembly conditions" |
| · | JB/T1612 "boiler pressurufacturing conditions." |
| · | JB16I3 "boiler pressure parts welding conditions." |
*Note:HD BOILER can bespoke special type of economizer according to customer's requirement.
Test
| 1 | Latest type of 'U' bending machine is used for precision cold bending of tubes. |
| 2 | Bending is done for all kind of heat exchanger, condenser, economizer, boiler tubes in Stainless Steel Seamless as well as welded. |
| 3 | Subsequent to 'U' bending tubes are hydro tested & stress relieved if asked for. |
| 4 | Also mock-up pieces are prepared for determining thickness reduction on the bend portion. |
| 5 | Dye penetrant testing on the bend portion is done ro detect cracks, flaws or any type of defect. |
| 6 | Special packing is provided to prevent any damages during transit. |
