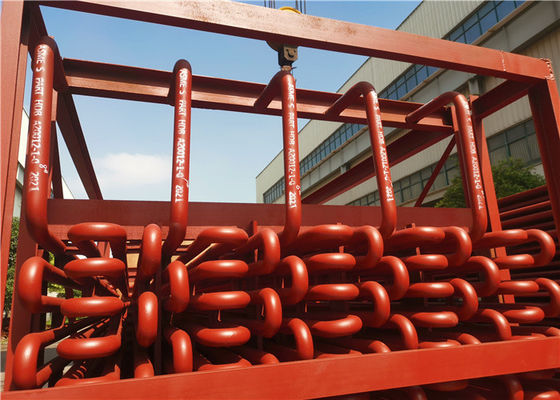

ASME Horizontal Low Carbon U Tube Pendant Superheater Coils High Pressure

High Integrity Superheater And Reheater Tubular Heat Exchangers Cooling Coils

Superheater Coils Function

For large boilers in power stations, superheaters and reheaters account for a big proportion in the total heating surfaces, they are to be arranged in the areas where smoke is with higher temperature. To improve the efficiency of thermal circulation in power stations, it is needed to improve the original parameters f steam gradually, the increase of steam pressure requires the corresponding increase of temperature for superheated steam, or the humidity of large stage exhaust of steam turbine will be too high, which will influence its safety. Thus, the steam flowing through superheaters and reheaters are high temperature steam, their heat transfer performance is quite bad, which determines that tube wall temperatures of superheaters and reheaters are high.

The Steam Superheater is a coil type heat exchanger which is used to produce superheated steam or to convert the wet steam to dry steam, generated by a boiler. It is different from a boiler in a way that, boiler utilizes both sensible heat as well as latent heat to convert water into steam while superheater utilizes only sensible heat to superheat the steam in order to increase its enthalpy.

For boilers in large power stations, superheaters and reheaters are necessary parts, to a large extend, they have influnced the safety and economy of boilers. Superheaters are the heating surfaces which heat the main steam from the surnatured temperature to the rated superheated temperature, and the reheaters are the heating surfaces which heat the exaust from the steam turbine high pressure cylinder to a certain temperature.When running conditions like boiler loads, coal types change, it is to adjust them to make sure the outlet temperature at the rated level of -10-+5 degrees.

Type Advantages Disadvantages Supporting method:

Details

Design structure

1. heating saturated steam, temperature up to 900 degree C.

2. high efficiency, >90%.

3. high speed heating.

4. design with stainless steel.

5. long design service life, 15 years.

Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.

HD Boiler offers a best in class facility,including

• Fabrication area of 200,000 square meters
• 80 Engineers
• 200 Coded welders
• 30 Licensed Inspectors (including NDT level-lll instructors)
• Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
• ISO 90001:2008 Quality System
• ASME Certificate of Utility Boiler
• ASME‘S’ , ‘U’ and NB stamp authorization
