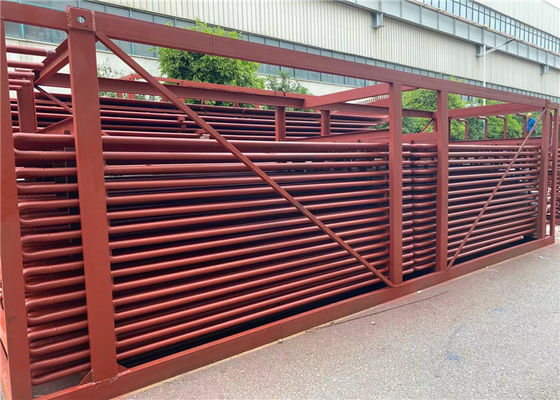

ASME Platen Water Boiler Superheater Coil Anti Corrosion high temperature

ASME Standard Platen Superheater Steel Coils For Thermal Power Plant Boiler

Superheater&Reheater, Custom Component For Boiler Superheater Coil

The function of Super heater in the thermal power plant is to remove the last traces of moisture from the saturated steam coming out of boiler and to increase its temperature above saturation temperature as per requirement at inlet of steam turbine.

Super heater types:
1. Radiant superheater: it is the earliest type of superheater and it is located above or behind banks of water tubes to protection them from direct flame or fire.
Parameters that increases the convection

a. Increasing the fuel-and airflow (combustion gas flow)
b. Increasing the mass flow rate of the steam

Radiation is mainly dependent on the flame temperature. as the steam flow rate increases the exit temperature become lower.
Radiant super heater
They are placed exposed to the heat source whcih requires the improvement of metal temperatures.

Radiant and convetive super heaters and reheaters are used for high temperature steam.
The accessory of high temperature radiant steam super heater in boiler

It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have φ32, φ38, φ42 or other types of specifications, according to user's needs separately.

Reheaters
They are the sane as the super heaters but as their exit temperature is a little bit less than super heaters and their pressure is 20% -25% less than the super heater, they can stand less quality material alloys.

Application:
Steam super heater is consisted of dense tube coils and is placed in the flue under the tempearture 450ºC-1000ºC.
For power plant boiler capacity over 10Mpa, platen and coiled superheater are usually adopted.

Details

Superheating raises overall efficiency as well as avoids too much condensation in last stages of turbine which avoids blade erosion.

The heat of combustion gases from furnace is utilised for removal of moisture from steam and to superheat the steam.

Super-heaters ususlly have several tube circuits in parallel with one or more return bends,connected between headers.

Heat from the hot gases to the vapour in the surperheater is transferred at high temperatures.

Therefore promary section of superheater is arranged in counterflow and secondary section in parallel flow to reduce the temp.stressing of the tube wall.


Principle


Principle of superheater is similar to steam generating tubes of boiler.

The hot gases at high temperature sweep over superheater tubes and raise the temperature of steam which magnitude depends upon exit gas temperature leaving the superheater and gas velocity.

use for heating saturated steam, steam temperature could be up to 900 degree C.

Superheater Capacity Upgrades to Increase Power Generation

Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.

HD Boiler offers a best in class facility

For over 30years, Hua Dong Boiler has been consistently innovating and improving our boiler superheaters and reheaters.The improvements in bending,welding and design ensure our products meet both Euorpean and American standards, ensuring a relabile performance.
