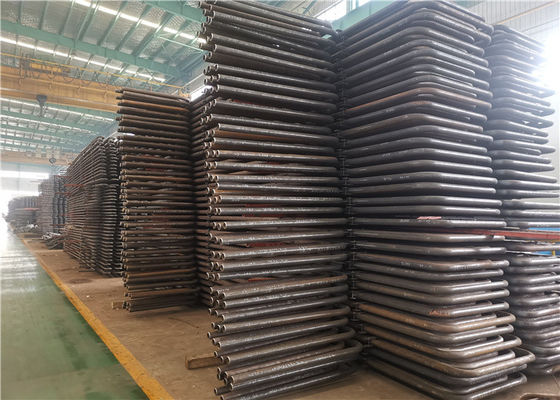

Inverted Carbon Steel Boiler Reheater Coil With Proper Steam Drainage
  • name
  • name
  • name
  • name

Inverted Carbon Steel Boiler Reheater Coil With Proper Steam Drainage

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Seaworthy packing
Delivery Period: 50 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 Tons / Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HD BOILER
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
SUPERHEATER
Material:
Carbon Steel,Alloy,Stainless Steel
Surface Treatment:
Painted
HS Code:
3215960855
Packaging:
Iron Frame Packing
Available:
Energy Saving
Color:
Red / Grey Other Color
Condition:
New
Specification:
Customized
Highlight:

boiler reheater coil

,

Carbon Steel reheater coil

,

Inverted steel boiler coil

Product Description


High efficiency HDB superheater and reheater for power plant boiler steam turbines for electricity generation

Product Description

A superheater is a device used to convert saturated steam or wet steam into superheated steam or dry steam. Superheated steam is used in steam turbines for electricity generation, steam engines, and in processes such as steam reforming.

Superheaters are one of the most important accessories of boiler that improves the thermal efficiency. In super heaters there should not be any fins as it increases the thermal stresses and carful should be taken when choosing the super-heater material that is stand for high temp and corrosion resistance

Specification



Type
Advantages
Disadvantages
Supporting method
Pendant-type
1.Firm structural support
1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom.
supported from above
Inverted-type
1.Proper drainage of the condensed steam
1. Lack the structural rigidity, especially in high speed gas flow
Supported from below
Horizontal -type
1. Proper drainage

2. Good structural rigidity
1. They do not view the flam directly so they are mainly from the convective type
Usually supported in the vertical gas ducts parallel to the main furnace.




Functions

Superheater is to increase the temperature of the steam above its saturation point.
Reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.

Inverted Carbon Steel Boiler Reheater Coil With Proper Steam Drainage 0

Inverted Carbon Steel Boiler Reheater Coil With Proper Steam Drainage 1

Certification

Inverted Carbon Steel Boiler Reheater Coil With Proper Steam Drainage 2






Quality Control

1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization


Company

Inverted Carbon Steel Boiler Reheater Coil With Proper Steam Drainage 3
