Hot Water SA210C serpentine evaporator coil convection surface

MOQ: 1 Set / Sets 10tons
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 40-50days
Payment Method: Western Union, L/C, T/T
Supply Capacity: 500 Tons per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhangjiagang, China
Brand Name
HD BOILER
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
superheater coil
Material:
Alloy Steel, Carbon Steel, SA210C SA213T22, Etc.
Usage:
Power Plant/CFB Boiler
Type:
Natural Circulation/Once Through
Structure:
Fire/Water Tube
Output:
Hot Water/Steam
Fuel:
Coal/Gas/Oil-fired, Water Heat
Condition:
New
Dimension(L*W*H):
Customization
Standard:
ASTM, EN Or ISO Etc.
Weight:
Min. 10 Tons; Max. 1000 Tons
Highlight:

Hot Water serpentine coil

,

SA210C serpentine coil

,

SA210C evaporator coil

Product Description



Boiler Superheater Coil Hot Water U Shaped Tube Eco Friendly Energy Saving



Superheater Coil Introduction

Serpentine coil is a tube that twists and turns several times in a plane.The convection heating surface of the boiler, such as economizer, superheater and reheater, adopts the structure of serpentine tube with horizontal and vertical arrangement.

The U-shaped tube heat exchanger has the largest heat exchange area; it has simple structure, compactness, high sealing performance, convenient maintenance and cleaning, minimum metal consumption under high temperature and high pressure, and the lowest cost; U-shaped tube heat exchanger has only one tube plate , Good thermal compensation performance and strong pressure bearing capacity, suitable for operation under high temperature and high pressure conditions.  Energy conservation and environment protection.

Process: Material→Ingot →Hot/Cold-Rolling→ Heat treatment(Normalizing+tempering)→ Inspection → rough machining→UT →2nd Heat treatment →finish machining →Inspection




Superheater Coil Details


1.Our products can be modified according to our customers' needs and the situation.
2.we design and manufacture safe,reliable and efficient products.HD BOILER has also completed stand-alone product quality assurance systems.
3.To ensure safety operation, the LT superheater uses SA210 Gr.A1 seamless steel tubes, and the HT superheater uses low-alloyed SA213 T22 seamless steel tubes.


Technical parameter


Medium air, flue gas, thermal oil, water, brine, refrigerant, etc.
Temperature standard heat exchanger to 560 ° C by special materials can be higher
Pipe materials carbon steel, stainless steel, alloy or special materials
Ribs materials carbon steel, stainless steel, non-ferrous metal, alloy or special materials
Thermal insulation &Surface treatment according to customers specification


Features



1. The equipment body can be designed into many modules to ensure the long term and stable running;

2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage

3. Improve the heat transfer efficiency

4. Structure arrangement: In line or staggered arrangement



Manufacturing and acceptance criteria



· JB/T6512 "boiler with a high-frequency resistance welding spiral fin tube manufacturing technology conditions"
· HG/T3181 "high-frequency resistance welding spiral fin tube"
· JB/T6511 "spiral finned tube test technical conditions."
· JB1611 "boiler tube mane box assembly conditions"
· JB/T1612 "boiler pressurufacturing conditions."
· JB16I3 "boiler pressure parts welding conditions."


*Note:HD BOILER can bespoke special type of economizer according to customer's requirement.



Test



1 Latest type of 'U' bending machine is used for precision cold bending of tubes.
2 Bending is done for all kind of heat exchanger, condenser, economizer, boiler tubes in Stainless Steel Seamless as well as welded.
3 Subsequent to 'U' bending tubes are hydro tested & stress relieved if asked for.
4 Also mock-up pieces are prepared for determining thickness reduction on the bend portion.
5 Dye penetrant testing on the bend portion is done ro detect cracks, flaws or any type of defect.
6 Special packing is provided to prevent any damages during transit.

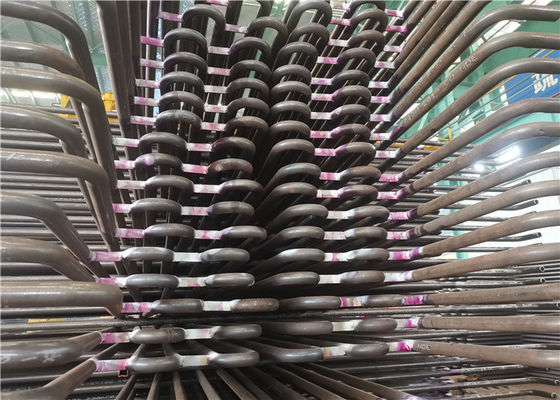

Hot Water SA210C serpentine evaporator coil convection surface 0
