| Place of Origin: | China |
| Brand Name: | HDB |
| Certification: | ISO9001 , SGS , TUV , ASME , EN |
| Model Number: | Boiler Fin Tube |
| Minimum Order Quantity: | 10 tons |
|---|---|
| Packaging Details: | Iron Frame Package |
| Delivery Time: | 30~50 days |
| Product Name: | Spiral Finned Tube | Material: | Stainless Steel |
|---|---|---|---|
| Application: | Heater Parts,Heat Exchanger | Loading: | Shanghai |
| Certificate: | ASME, ISO90001,SGS,EN | Keyword: | High Frequency Welded Finned Tube |
| High Light: | coal fired Boiler Fin Tube,TUV Boiler Fin Tube,Cold Finished Fin Tube |
||

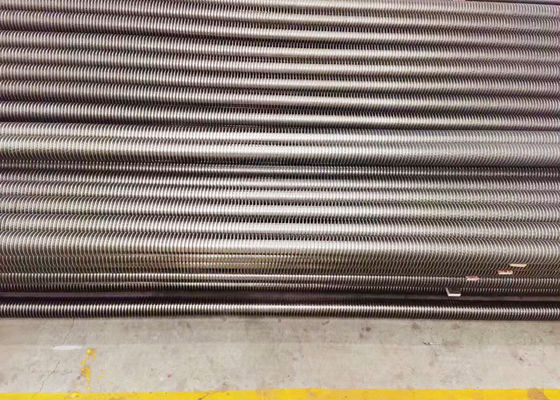

Stainless Steel Spiral Finned Tube Heat Exchanger Boiler Parts for Coal-fired Boilers
Detailed description:
Spiral finned tube is an efficient heat transfer element with spiral fins. Its heat transfer area is several times to dozens of times that of bare tube, which can strengthen heat transfer, reduce flow resistance and metal consumption, so as to improve the economy and operation reliability of heat exchange equipment.
At present, spiral finned tubes have been widely used in various boilers. Spiral finned tubes can be manufactured by various methods. At present, the finned tubes used in heat exchange equipment such as boilers and pressure vessels are mainly manufactured by the following methods: high frequency resistance welding spiral finned tubes, brazed spiral finned tubes and integral spiral finned tubes.
All types of fin tube we could supply are shown as below:
| PRODUCT | TYPE | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE | FIN SIZE |
| Heat Exchanger Finned Tube | Extruded Fin Tube | All Kind of Material can be applied | Aluminum A1100 | 15.88~50.8 | 7~11.5FPI |
| Fin Height Max 16mmH | |||||
| L-Foot Fin Tube | All Kind of Material can be applied | Copper C1100, C1220 | 12.70~50.8 | 7~11.5FPI | |
| (Wrap On Type) | Fin Height Max 16mmH | ||||
| G-Fin Tube (Embedded Type) | Aluminum A1100, A1050, A1060 | ||||
| High Frequency Welded Finned Tube | A179 Carbon Steel Tube | Carbon Steel Tube | 12.70~160 | 1.5~7FPI | |
| Stainless Steel Tube | Stainless Steel Tube | 0.8~3.2mm. Thickness | |||
| Alloy Steel Material | Alloy Steel Material | ||||
| Integral Copper & Copper Alloy High Finned Tube | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88~22.23 | 5~9FPI | |
| Max 12mm. H | |||||
| Oval Finned Tube | Carbon Steel Tube | Carbon Steel Tube | All Size Available | 5~15FPI | |
| Stainless Steel Tube | Stainless Steel Tube | ||||
| Alloy Steel Material | Alloy Steel Material | ||||
| Copper & Copper Alloy Tube | Copper & Copper Alloy Tube | ||||
| Monometallic Fin Tube | Low Fin Tube | Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. | -- | 9.52~40 | 12, 16, 19 28 FPI, etc. |
| Turbo-C Tube | |||||
| Turbo-E Tube | |||||
| Corrugated Tube | All Kind of Material | -- | 6.35~40 | 2~9FPI |
