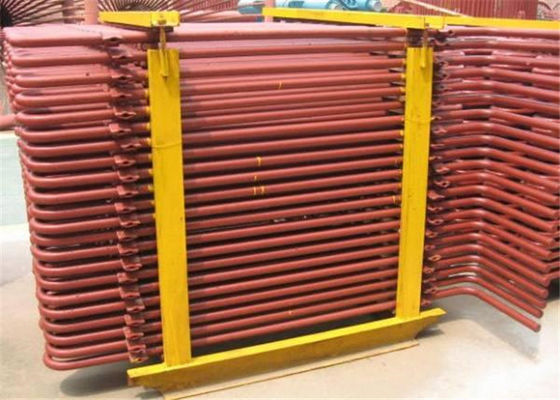

P235GH En10216 Boiler Fin Tube Economizer Natural Circulation
Product Details
| Material: | Carbon Steel | Usage: | Heat Exchange |
|---|---|---|---|
| Type: | Natural Circulation/Once Through | Structure: | Fire/Water Tube |
| Output: | Hot Water/Steam | Fuel: | Coal/Gas/Oil-fired, Water Heat |
| Heat Transfer Surface: | Tubular Heat Exchanger | Dimension(L*W*H): | Customization |
| Highlight |
En10216 Fin Tube Economizer,P235GH Fin Tube Economizer,En10216 Boiler Economizer |
||
Product Description
Waste Heat Recover Boiler Heat Exchanger, P265gh P235gh En10216 Hh Fin Tube Economizer
Economizer Introduction
Boiler economizer is part of the heating area of boiler, to heat the feed water into saturated water inside the flue ducting, due to its absorption of low temperature flue gas heat, the economizer reduces the exhaust temperature of flue gas, save the energy, improve the efficiency, so called as economizer. Economizer steel tube type is without pressure limit, can be used as a boiling type, generally made by the outer diameter of 32 ~ 51 mm carbon steel tube.Sometimes in tubes with fins and fin, to improve the heat transfer effect. Boiler economizer is used for recovery of waste heat from boiler.
Boiler economizer is a device that is designed to increase the operating efficiency of a boiler, cutting down on its operational costs over the lifetime of the boiler.
Although the savings on any given day may be relatively small, the impact over time can be significant; some boilers are designed with economizers built in, while in other cases, an economizer can be fitted on after the act.
The boiler economizer acts as a waste heat recovery device, ensuring that this heat does not go unused.
Instead, the heat is used to essentially preheat the water, so that less heat is required to bring the water to a temperature high enough to make steam.
Specifications
| Description | Boiler economizer |
| Material | Alloy steel, Carbon steel, SA210C ,SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight |
Min: 10 ton Max.:1000 ton |
| Smelting Process: | EF+LF + VD |
| Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
| UT standard | ASTM A388 or EN10228, etc |
Technical specifications
Material Structure
Consists of a serious of spiral fin tubes, the headers of inlet and outlet, bend, frame and other auxiliaries.
Structure Arrangement
In line / staggered arrangement.
Function
(1) The economizer is a steam generation system as like a boiler. when the exhaust gas discharge from the engine cylinder through the exhaust valve it goes to the boiler for generate steam by heating of water.
(2) After those gas it goes through the economizer the remaining exhaust gas temperature is heated the water in economiser. it help to generate steam, and it is improving the efficiency and save the fuel consumption
(3) An economizer uses the waste heat from the boiler exhaust, that would otherwise be lost to atmosphere to (in most cases) preheat the feed water into the boiler.This improves the boiler efficiency and reduces fuel costs.
Variety
Utility Boiler Economizer
| 1 | HDB produces economizers for utility boilers, which includes boilers fueled by coal, wood, oil, or other solid fuels to produce electricty from the boiler's high pressure steam. |
| 2 | These economizers are usually located in the back pass of the boiler and oriented with the tubes running horizontally.The boiler feedwater runs through the economizer circuits in the opposite direction of the gas flow (called counterflow). |
| 3 | Bare tubes are typically utilized in order to minimize ash fouling, but some boiler OEM's design their economizers with finned tubes, either spiral or long finned. |
| 4 | HDB can produce economizer elements with either bare, spiral finned, or long finned tubes, and if you prefer, re-design your unit to one of the other tube-types. HDB can also fabricate replacement headers for all utility boiler economizers. |
Package Boiler Economizer
| 1 | HDB has unique manufacturing capabilities that the Optimus engineers take full advantage of when designing sulfuric acid plant economizers and superheaters. |
| 2 | Often this allows the Optimus units to be configured for higher heat transfer efficiencies which results in a reduced surface area requirement and, consequently, a lower-priced product. |
| 3 | HDB utilizes its on-site capabilities to fin and bend the tubes, machine and fabricate the headers, drill the tubesheets, cut and prep all casing materials, and perform all of the pressure part and casing welds. |
| 4 | This gives HDB more control of the manufacturing sequence and schedule which has helped us achieve a remarkable record of on-time delivery performance. |
HRSG Economizer
| 1 | Economizers for today's HRSG modules are configured with fintubes that hang vertically. HDB has fabricated economizer coils for virtually all of the HRSG OEM companies and understands the unique features of each. |
| 2 | In many cases, utilities desire to upgrade their economizers from plain carbon steel to an alloy material to help resist flow accelerated corrosion (FAC) inside the headers and tube bends. |
| 3 | HDB is a one-stop shop for economizer fabrication because we prep all the materials and perform all of the pressure part and attachment welding, from finning the fintubes, fabricating the headers, and assembling the coil bundle. |
Various boiler economizers can be fabricated
- Steel Boiler Economizer (SA210A1, SA210C, SA213T22)
- Carbon Steel H-Shaped Steam Boiler Economizer
- Alloy Steel Boiler Economizer
- Spiral Welded Economizer
- CFB Boiler Economizer
- Power Station Boiler Economizer
- Steaming Economizer
- Non-Steaming Economizer
- Plain Tube Economizer
- Finned Tube Economizer
- Spiral Finned Tube Economizer
- Serpentine Tube Economizer
- ASME Standard Boiler Economizer
- EN Standard Boiler Economizer
- ISO Boiler Economizer
*Note:HD BOILER can bespoke special type of economizer according to customer's requirement.
Test
| 1 | Latest type of 'U' bending machine is used for precision cold bending of tubes. |
| 2 | Bending is done for all kind of heat exchanger, condenser, economizer, boiler tubes in Stainless Steel Seamless as well as welded. |
| 3 | Subsequent to 'U' bending tubes are hydro tested & stress relieved if asked for. |
| 4 | Also mock-up pieces are prepared for determining thickness reduction on the bend portion. |
| 5 | Dye penetrant testing on the bend portion is done ro detect cracks, flaws or any type of defect. |
| 6 | Special packing is provided to prevent any damages during transit. |
