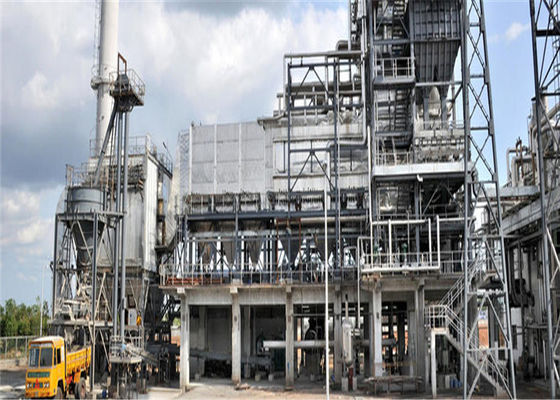

Energy Saving Industrial Boilers Hrsg Steam Generator
Product Details
| Usage: | Industry And Power Station,improve The Production Efficiency | Style: | Horizontal |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | Customized |
| Product Name: | HRSG Heat Recovery Steam Generator | Material: | ALLOY,Q345R Steel Plate,Steel |
| Highlight |
boilers hrsg steam generator,industrial hrsg steam generator,energy saving hrsg steam generator |
||
Product Description
Energy Saving Industrial Boilers Heat Recovery Steam Generator Easy To Operate
Technical Features
| Kiln (AQC) HRSG Features | Kiln (SP) HRSG Features |
| 1.Modular assembly structure, reliable sealing expansion | 1. Heating surface tubes and headers with privildged connection structure, reducing mechanical shock and vibration |
| 2. Adopt wear fin tubes, boiler pressure parts life assurance | 2. By mechanical vibration cleaning mode, continous cleaning mode little impact on system operation |
| 3.Unique flash technology, the boiler outlet temperature is reduced to below 90ºC | 3.Set sealed scraper gray machine, greatly reducing dust tail. |
Specifications
| Condition: | New | Structure: | WHRS Type |
|---|---|---|---|
| Fuel: | Biological | Pressure: | Low/High Pressure |
| Range Of Applications: | Industrial | Specification: | Customized |
| Manufacturing Level: | A | Surface Treatment: | Painted |
| Output: | Steam | Water Circulation: |
Natural Circulation
|
Product Introduction
|
HRSG generator is composed of boiler barrel, mobile smoke hood, furnace mouth section flue, inclined 1 section flue, inclined 2 sections flue, end 1 section flue, end 2 sections flue, feeding tube (feeding chute), oxygen nozzle, nitrogen sealing device and nitrogen sealing plug, manhole, differential pressure device, support and hanger of flue. |
|
HRSG generator is divided into six circulation loops, each circulation loop is composed of the down pipe and up pipe, each section of the flue feed water from the boiler tube through the down pipe into the lower collection box of each flue into each heating surface, water through the heating surface to produce steam into the inlet collection box, then by the rising pipe into the pot.All flanges are connected with flanges. |
Parameter
| Cement production line capacity t/d | 1000 | 2500 | 5000 | 10000 | |
| Boiler inlet flow Nm3/h | Kiln(front) | 60000 | 88000 | 243000 | 472000 |
| Kiln(tail) | 76000 | 170000 | 328000 | 612000 | |
| Boiler inlet gas temperature℃ | Kiln(front) | 370 | 360 | 380 | 390 |
| Kiln(tail) | 360 | 320~360 | 330 | 330 | |
| Rated evaporation t/h | Kiln(front) | 5.8 | 7.25 | 24 | 50 |
| Kiln(tail) | 7.5 | 10~15.8 | 20~24.6 | 35.5 | |
| Rated steam pressure Mpa | Kiln(front) | 1.25 | 1.25 | 1.25 | 1.25 |
| Kiln(tail) | 1.25 | 1.25 | 1.25 | 1.25 | |
| Rated steam temperature℃ | Kiln(front) | 340 | 330 | 350 | 360 |
| Kiln(tail) | 340 | 300~340 | 310 | 310 | |
| Boiler structure | Kiln(front) | Vertical | Vertical | Vertical | Vertical |
| Kiln(tail) | Vertical | Vertical and Horizontal | Vertical and Horizontal | Vertical | |
Company Profile
| 500 employees |
| 100,000 ㎡ with fixed assets amounting to USD 110,000,000 |
| 34 years experience |
| ISO9001, SO3834, EN12952 certificated |
| 150km expressway to Shanghai |
| 60km state road to Suzhou or Wuxi |
Our main products cover Utility Boiler, HRSG Boiler, coal-fired , oil(gas) -fired, coal-water-slurry-fired and garbage-fired steam/hot water boilers, organic heat carrier boilers, etc., and Boiler spare parts (Economizer, Finned tube, Header, Steam drum, Superheater, Water wall panel, Air preheater, Cyclone separator, etc., which are widely used in power generation, heat supply, chemical engineering, textile, food, paper, road building, plastic, rubber and wood working industries.
