TUV Certificated Carbon Steel Boiler Membrane Wall Tubes High Efficiency

TUV Certificated Carbon Steel Boiler Membrane Wall Tubes High Efficiency

  • TUV Certificated Carbon Steel  Boiler Membrane Wall Tubes High Efficiency
  • TUV Certificated Carbon Steel  Boiler Membrane Wall Tubes High Efficiency
  • TUV Certificated Carbon Steel  Boiler Membrane Wall Tubes High Efficiency
  • TUV Certificated Carbon Steel  Boiler Membrane Wall Tubes High Efficiency
TUV Certificated Carbon Steel  Boiler Membrane Wall Tubes High Efficiency
Product Details:
Place of Origin: China
Brand Name: HD BOILER
Certification: ISO9001 , SGS , TUV , ASME , EN
Model Number: Water wall panel
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Seaworthy packing
Delivery Time: 50 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Tons / Month
Contact Now
Detailed Product Description
Material: Carbon Steel,Alloy,Stainless Steel Surface Treatment: Painted
HS Code: 3215960855 Packaging: Iron Frame Packing
Available: Energy Saving Fuel: Coal / Gas / Coal-fired / Water Heat
Port: Shanghai
High Light:

membrane boiler water wall tubes

,

carbon boiler water wall tubes

,

TUV Boiler Water Wall Tubes



TUV Certificated Carbon Steel Boiler Membrane Wall Tubes High Efficiency







Product Description of Boiler Membrane Wall


According to the structure type, there are three types: light tube type, membrane type and tubular type.Light tube water wall is composed of a whole row of seamless steel tube, the structure is the most simple;The membrane water-cooled wall is a combination of a sealed heating surface, which can not only improve the air tightness of the furnace, reduce air leakage, but also better protect the furnace wall, so that the weight of the furnace wall is reduced and the structure is simplified;Barbed tube water wall is welded on the water wall of many 20 ~ 25mm long, diameter of 6 ~ 12mm pins, and then coated with chrome sand refractory plastic, in order to reduce the part of the water wall heat absorption, improve the temperature of the combustion area, suitable for fuel ignition is particularly difficult occasions or some liquid slag furnace.Press decorate place, have attached wall type and lie between wall type (namely double-sided heat) water cooling wall two kinds.The former is mostly embedded in the inner wall of the furnace wall and absorbs heat on one side.The latter is mostly installed in the middle of the furnace of a large boiler, separating the whole furnace into two independent parts of each other and heating on both sides.



Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. We supply Panels with integrated manhole openings in the panels.



Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.





Specification of Boiler Membrane Wall


Name Membrane water panel
Material Carbon steel,Alloy,Stainless steel
Tube size Φ38 - 76 mm, Customize
Standard ISO , ASME
Model Studded
Application Istallable around the boiler combustion chamber

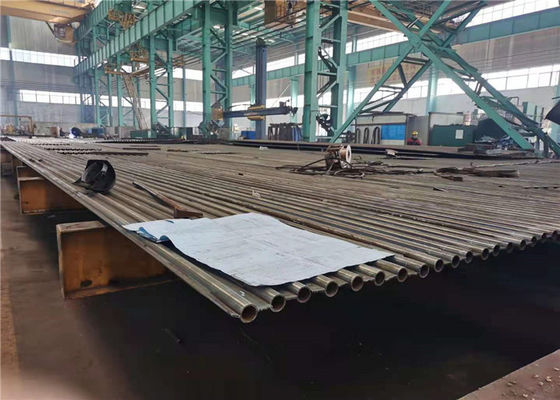

TUV Certificated Carbon Steel  Boiler Membrane Wall Tubes High Efficiency 0

Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. We supply Panels with integrated manhole openings in the panels.



The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.



Quality Control



1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization

TUV Certificated Carbon Steel  Boiler Membrane Wall Tubes High Efficiency 1
