|Place of Origin:||China|
|Brand Name:||HD BOILER|
|Certification:||ISO9001 , SGS , TUV , ASME , EN|
|Model Number:||H / Spiral TYPE|
|Minimum Order Quantity:||500 tons|
|Packaging Details:||Iron Frame Packing|
|Delivery Time:||30 - 60 Days|
|Payment Terms:||Western Union|
|Supply Ability:||1500 Tons Per Month|
|Standard:||ASME Standard Or GB||Material:||ND Steel / Carbon Steel / Alloy Steel Etc|
|Bare Tube:||Cold Finished||Type:||Boiler Part|
|Surface Treatment:||Painted||Port:||Shang Hai|
spiral boiler fin tube,
auto welding boiler fin tube,
TUV Boiler Fin Tube

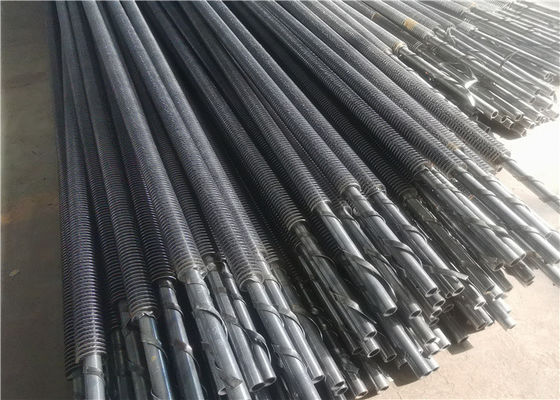

Auto-Welding Spiral Type Boiler Fin Tube Heat Exchanger High Frequence Boiler Spare Parts
Spiral finned tube :Its heat transfer area is several times to dozens of times of the bare tube, it can strengthen heat transfer, reduce flow resistance, reduce metal consumption, thus to improve the economy and operation reliability of heat exchange equipment.has been widely used in the heat recovery of coal economizer, air preheater and waste heat boiler, as well as heat exchange equipment in chemical industry and pressure vessel.
High frequency and high frequency welding spiral finned pipe is one of the most widely used spiral finned pipe at HDB.It is widely used in power, metallurgy, cement industry waste heat recovery and petrochemical industry.High frequency welding spiral finned pipe is in the steel belt winding steel pipe at the same time, using the skin effect and proximity effect of high frequency current, the steel belt and the outer surface of the steel pipe are heated until the plastic state or melting, and the welding is completed under certain pressure of the wound steel belt.This high frequency welding is actually a solid phase welding.Compared with Mosaic, brazing (or overall hot dip galvanizing) and other methods, it is more advanced in product quality (fin bonding rate is high, up to 95%), productivity and automation.
1.Anti - corrosion
3.Lower contact resistance
5.Ability to prevent ash accumulation
|Medium||air, flue gas, thermal oil, water, brine, refrigerant, etc.|
|Temperature||standard heat exchanger to 560 ° C by special materials can be higher|
|Pipe materials||carbon steel, stainless steel, alloy or special materials|
|Ribs materials||carbon steel, stainless steel, non-ferrous metal, alloy or special materials|
|Thermal insulation &Surface treatment||according to customers specification|
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
1.Our products can be modified according to our customers' needs and the situation.
2.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.
3.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
|1||Impact test and Strength calculation report with applied materials information.|
|2||100%NDT(non-destructive inspection) report of steel plate, tube and electrode.|
|3||X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler.|
|4||Hydraulic test report: ensure the standard working pressure and safety.
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
